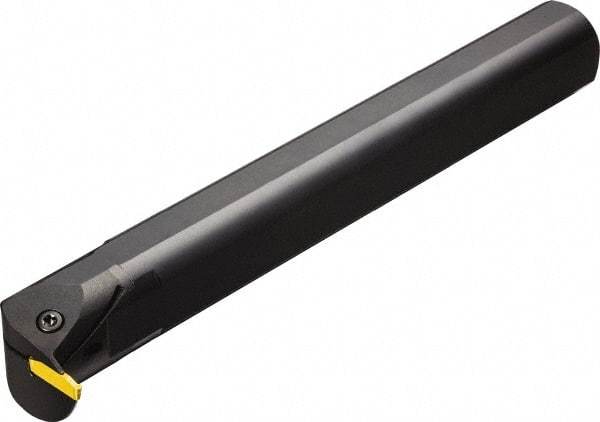

Sandvik Coromant - AG123, Internal, Left Hand, 11mm Max Depth of Cut, 5mm Max Groove Width, Indexable Grooving Tool Holder - N123..GM Insert Compatibility, 1.46" Shank Height, 11.811" OAL, Through Coolant
Item #: 49344427
Brand: Sandvik Coromant
Model #: 5734702
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (Decimal Inch) | 11.8110 |
| Toolholder Style | AG123 |
| Insert Compatibility | N123..GM |
| Shank Height (Decimal Inch) | 1.4600 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Coolant Hole Diameter (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Insert Seat Size | J |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Maximum Hole Depth (Decimal Inch) | 2.1650 |
| Maximum Bore Depth (Decimal Inch) | 2.1650 |
| igrvh Maximum Bore Depth (mm) | 55.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7280 |
| Center to Cutting Edge (Decimal Inch) | 1.1890 |
| Head Length (Decimal Inch) | 2.1654 |
| Shank Length (Decimal Inch) | 9.6457 |
| Manufacturers Catalog Number | LAG123J045-24B |
| Height to Shank Top (Decimal Inch) | 1.4570 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | L123J2-0500-05; N123J1-0500-00; N123J1-06; N123J1-0600-00; N123J1-060004S; N123J1-0600S; N123J2-0475-00; N123J2-0500-00; N123J2-0515-00; N123J2-0541-00; N123J2-0556-00; N123J2-06; R123J2-0500-05 |
| Minimum Bore Diameter (Decimal Inch) | 1.9680 |
| Minimum BoreDiameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.5000 |
