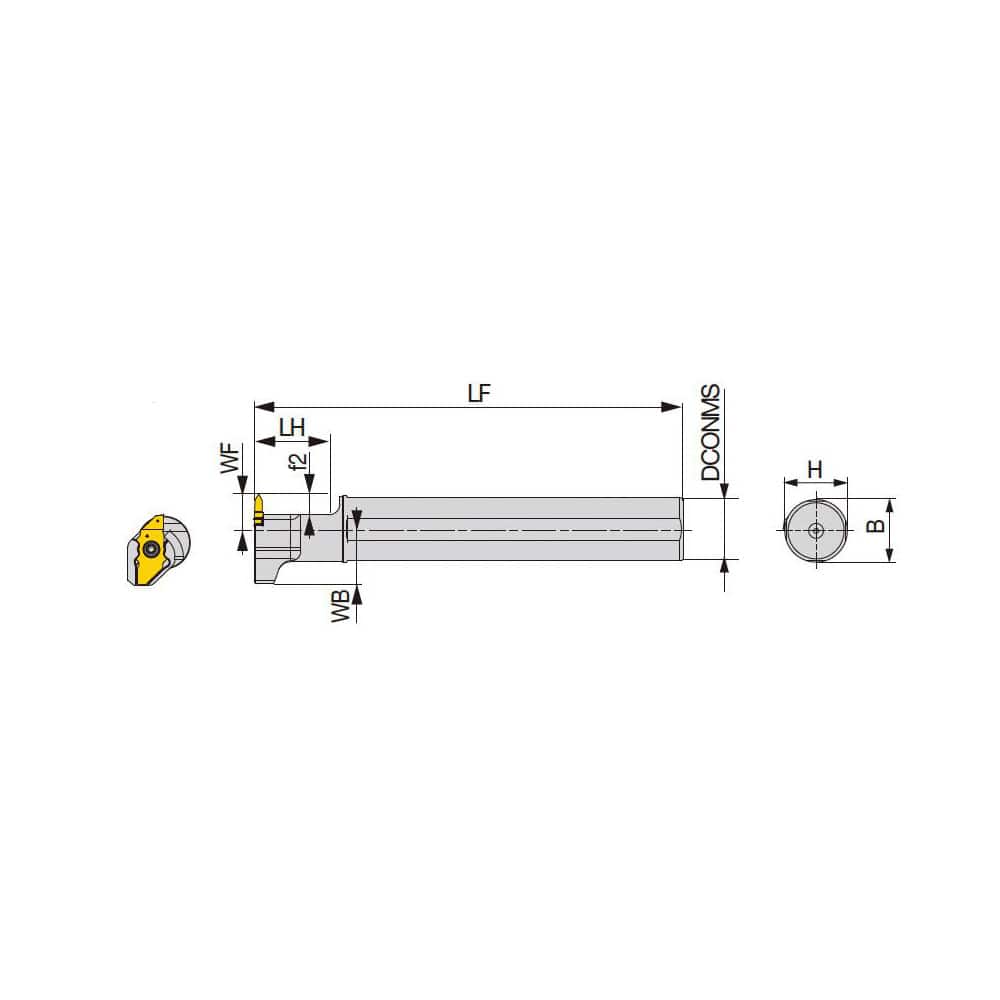

Indexable Threading Toolholder: External, Left Hand, 24 x 25 mm Shank Steel, Series JS
Item #: 49137532
Brand: Tungaloy
Model #: 6746957
Product Specifications
| Thread Type | External |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | JXPG12R; JXPG06R; JXTG12FR |
| Shank Width/Diameter (mm) | 25.00 |
| Toolholder Style | JS-SXXL |
| Coolant Entry Style Code | 0 - Without Coolant |
| Insert Holding Method | Screw |
| Shank Height (mm) | 24.00 |
| Shank Length (mm) | 76.10 |
| Overall Length (mm) | 100.00 |
| Minimum Bore Diameter (mm) | 26.00 |
| Series | JS |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Threading |
| Head Length (mm) | 21.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Adjustable Overhang | Yes |
| Back of Bar to Cutting Edge (mm) | 25.40 |
| Center to Cutting Edge (mm) | 10.00 |
| Toolholder Material | Steel |
| Coolant Through | No |
