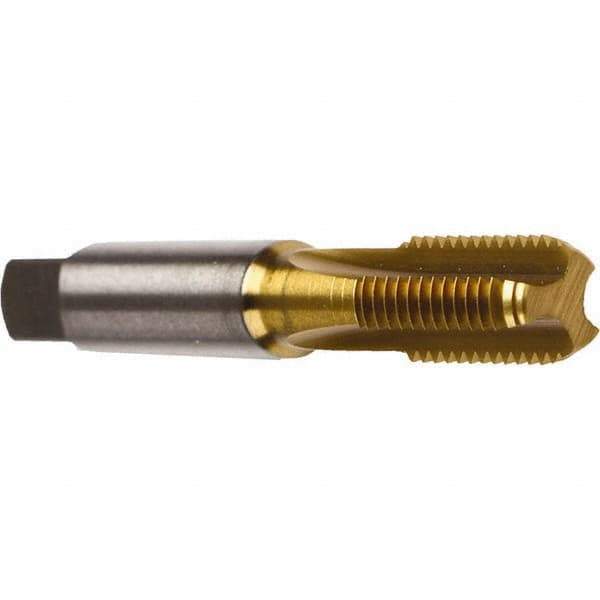

Emuge - M10x1.50 Metric Coarse 6HX 3 Flute TiN Finish Cobalt Straight Flute Machine Tap - Bottoming, Right Hand Thread, 2-15/16" OAL, 0.866" Thread Length, Oversize
Item #: 48725790
Brand: Emuge
Model #: AU110601.0100
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M10x1.50 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | Cobalt |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 2.93750 |
| Overall Length (Inch) | 2-15/16 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 0.8660 |
| Neck Length (Decimal Inch) | 1.3780 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Shank Length (Decimal Inch) | 1.56 |
| Square Size (Decimal Inch) | 0.2860 |
| Material Application | Cast Iron; Copper Alloys; Duroplastics; Steel |
