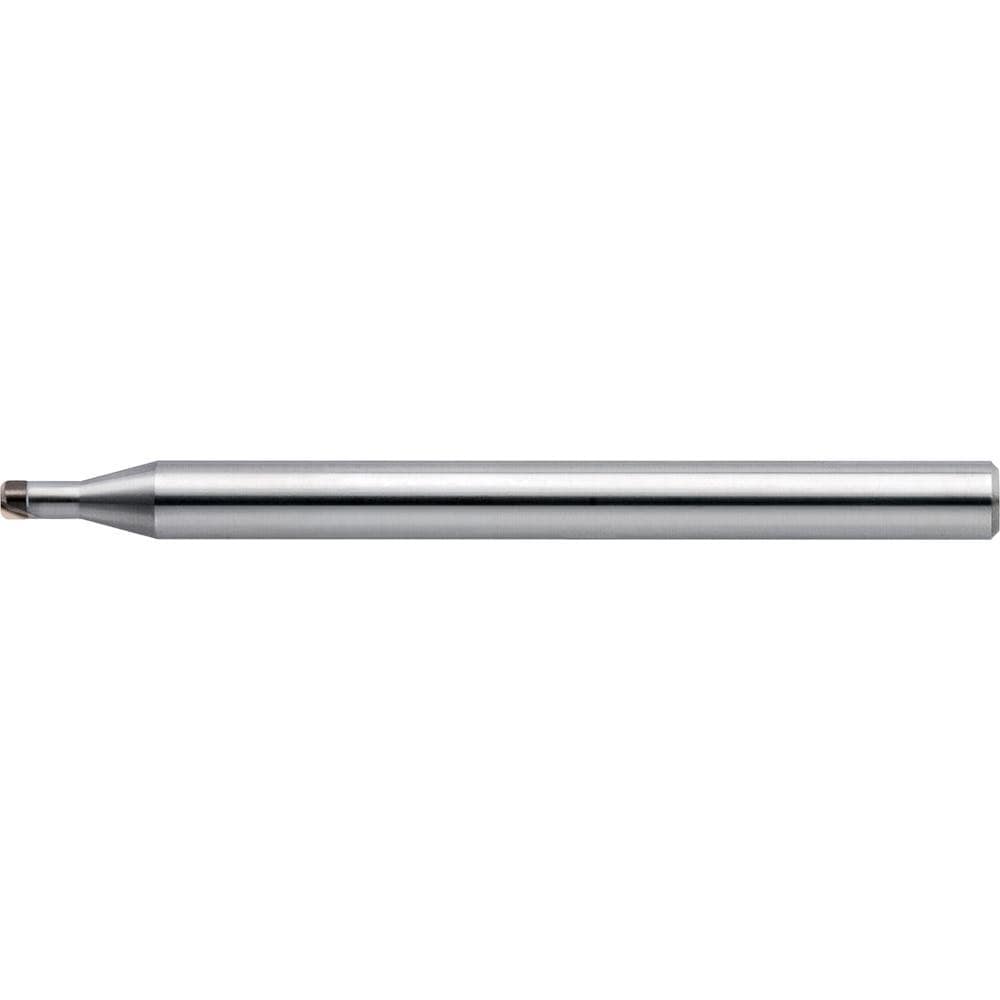

Corner Radius End Mill: 0.20 mm Dia, 0.08 mm LOC, 0 deg Helix, CBN Coated, Corner Radius End, Centercutting Series CBN-LBFRRF
Item #: 48489363
Brand: US Union Tool
Model #: 2793000
Product Specifications
| Mill Diameter (mm) | 0.20 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 0.08 |
| End Mill Material | Solid Carbide |
| Coating/Finish | CBN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.02 |
| Overall Length (mm) | 50 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Length Type | Long |
| Extended Reach | No |
| Shank Diameter (mm) | 4.00 |
| Mill Diameter Tolerance | -0.008 |
| Shank Diameter Tolerance | -0.004 |
| UNSPSC Code | 27112803 |
| Material Grade | Super MG |
| Series | CBN-LBFRRF |
