Turning Insert: CNMG432EN-M70 CTC2135, Carbide
Item #: 26230391
Brand: Ceratizit
Model #: 70119430

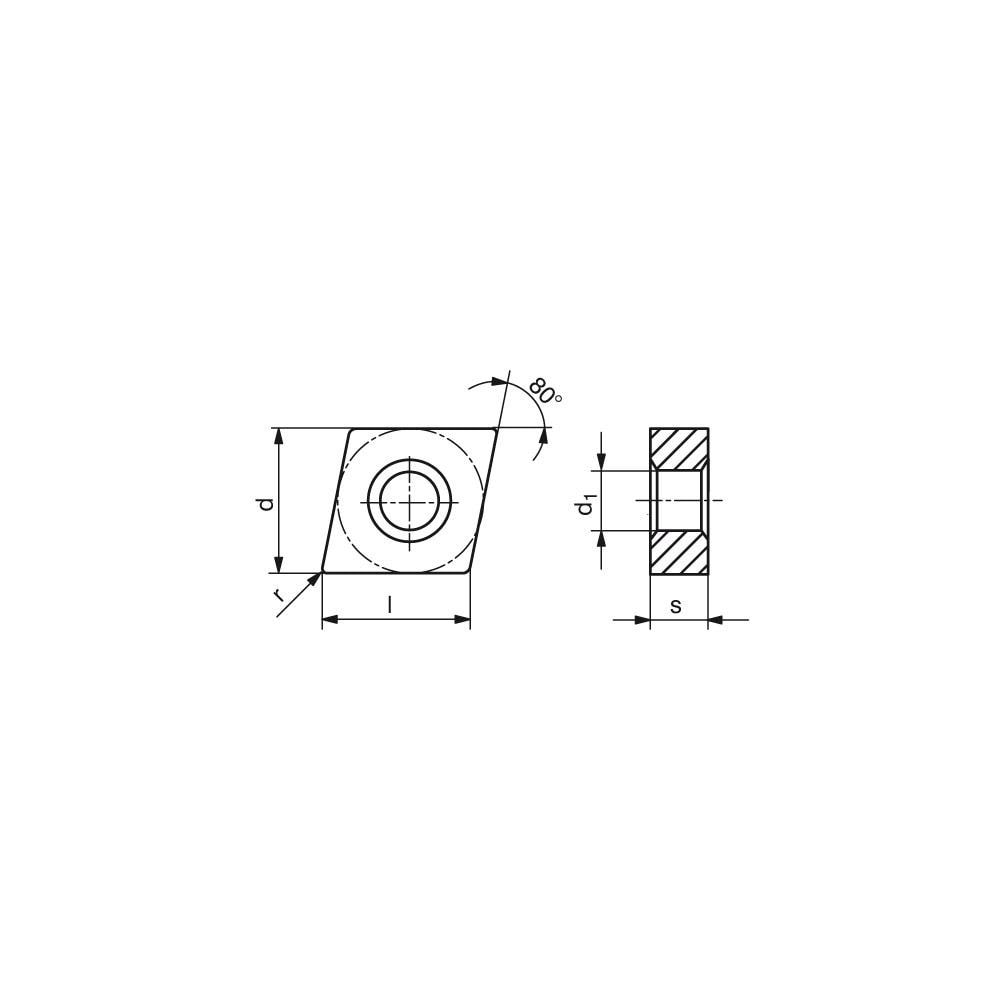

Product Specifications
| ANSI Insert Code | CNMG432 |
| ISO Insert Code | CNMG120408 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | CTC2135 |
| Coating/Finish | TiCN; Multilayer TiNB |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CNMG |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.5079 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K |
| Iso Code | CNMG 120408EN-M70 CTC2135 |
| Chip Breaker | M70 |
| ANSI Size Code | 432 |
| ISO Size Code | 120408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
