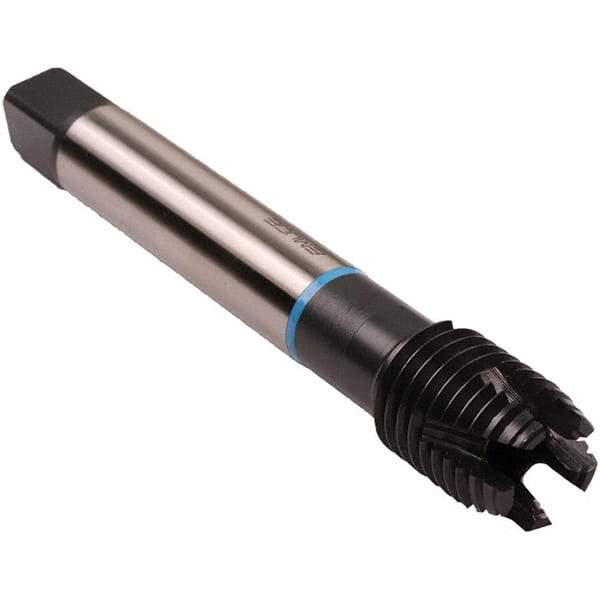

Emuge - M42x3.00 Metric Fine 6HX 6 Flute Nitride/Oxide Finish High Speed Steel Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 200mm OAL, 45mm Thread Length
Item #: 47955455
Brand: Emuge
Model #: C0803001.0576
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Nitride/Oxide is used to prevent galling, welding and loading. It is commonly used on low carbon steels, stainless steels and nonferrous metals.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M42x3.00 |
| Class of Fit | 6HX |
| Number of Flutes | 6 |
| Chamfer | Modified Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Nitride/Oxide |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Fine |
| Overall Length (mm) | 200.00 |
| Series/List | C0803001 |
| Thread Length (mm) | 45.00 |
| Tapping Depth (mm) | 45 |
| Shank Diameter (mm) | 32.00 |
| Material Application | Cast Iron; Stainless Steel; Steel Alloys |
