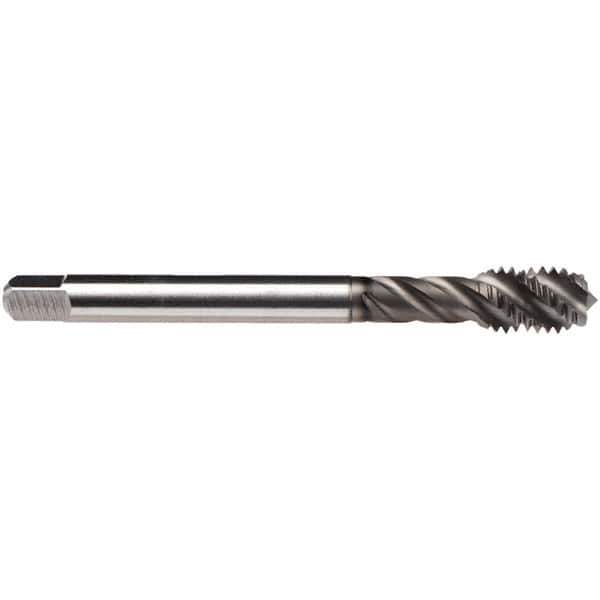

Emuge - M16x2.00 Metric, 4 Flute, 45° Helix, Bottoming Chamfer, GLT-1 Finish, High Speed Steel Spiral Flute STI Tap - Right Hand Flute, 110mm OAL, 12mm Shank Diam, 27mm Thread Length, 6H (mod) Class of Fit, Series Enorm Z/E
Item #: 47944640
Brand: Emuge
Model #: C051C400.0979
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
GLT-1 is a multi-layered coating that offers a hard surface coating and an anti-friction layer for fast and efficient chip removal. It is heat resistant, wear resistant and prevents sliding.GLT-1 is a proprietary coating exclusive to Emuge.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M16x2.00 |
| Class of Fit | 6H (mod) |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Finish/Coating | GLT-1 |
| Overall Length (mm) | 110.00 |
| Helix Angle | 45 |
| Thread Standard | Metric |
| Material | High Speed Steel |
| Flute Direction | Right Hand |
| Thread Length (mm) | 27.00 |
| Series/List | Enorm Z/E |
| Shank Diameter (mm) | 12.00 |
