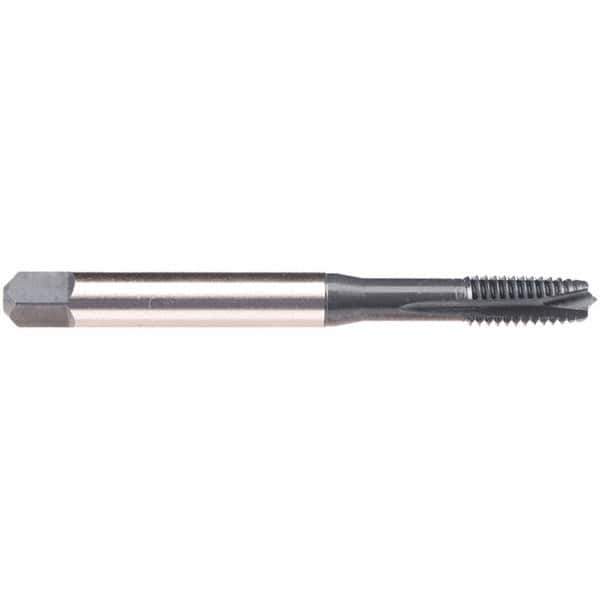

Emuge - #5-44 UNF 3 Flute 2B/3B Plug Spiral Flute Tap - High Speed Steel, NE2 Finish, 2.205" OAL, Right Hand Flute, Right Hand Thread, Series BU497300
Item #: 47944145
Brand: Emuge
Model #: BU497300.5038
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
NE2 is a proprietary nitride coating used for cutting a wide range of material including carbon steel, steel alloys, stainless steel, aluminum and copper. Ideal for short run tapping operations. NE2 is a proprietary coating exclusive to Emuge Corporation.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #5-44 |
| Chamfer | Plug |
| Class of Fit | 2B/3B |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | NE2 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.2050 |
| Helix Angle | 0 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.4330 |
| Series/List | BU497300 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Material Application | Aluminum; Carbon Steel; Copper; Stainless Steel; Steel Alloys |
