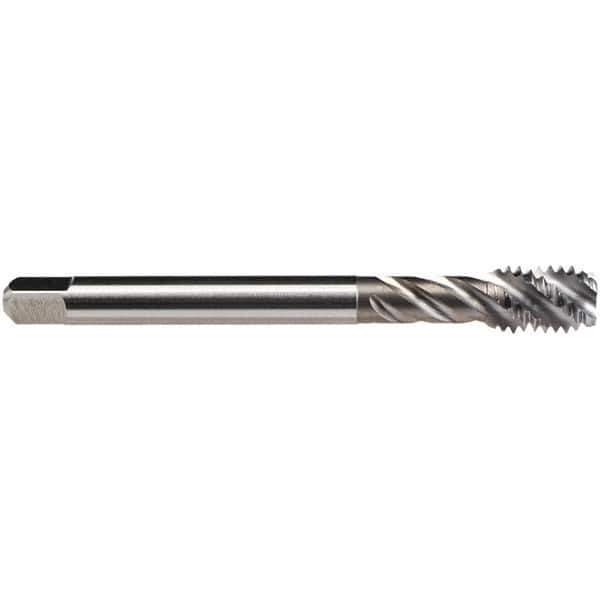

Emuge - M16x2.00 M 4 Flute Bottoming Spiral Flute Tap - High Speed Steel, Bright Finish, 110mm OAL, Right Hand Flute, Right Hand Thread, Series Enorm Z/E
Item #: 47943949
Brand: Emuge
Model #: C0513500.1060
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M16x2.00 |
| Chamfer | Bottoming |
| Number of Flutes | 4 |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 110.00 |
| Helix Angle | 45 |
| Thread Standard | M |
| Thread Length (mm) | 27.00 |
| Flute Type | Fast Spiral |
| Style | Spiral Flute |
| Series/List | Enorm Z/E |
| Tapping Depth (mm) | 27.00 |
| Shank Diameter (mm) | 12.00 |
