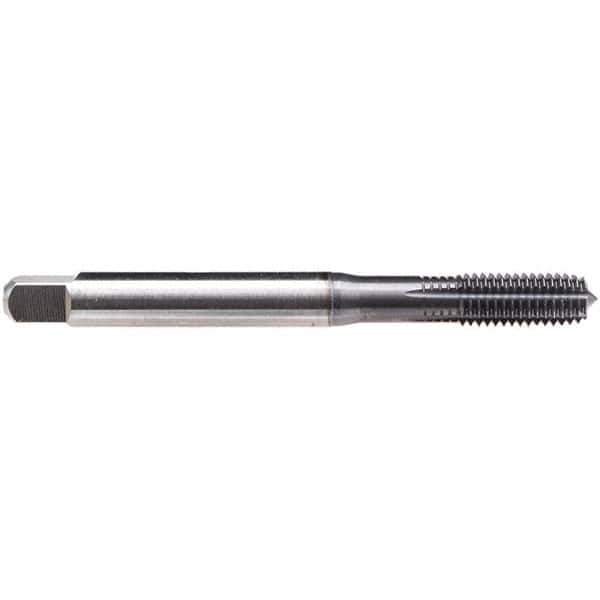

Emuge - 5/16-24 UNF, Semi-Bottoming Chamfer, TiCN Finish, High Speed Steel Thread Forming STI Taps - 3-35/64" OAL, 0.318" Shank Diam, 25/32" Thread Length
Item #: 47940440
Brand: Emuge
Model #: BU929010.5640
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/16-24 |
| Class of Fit | 3B |
| Chamfer | Semi-Bottoming |
| Finish/Coating | TiCN |
| Overall Length (Inch) | 3.5469 |
| Thread Standard | UNF |
| Thread Length (Inch) | 25/32 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Material | High Speed Steel |
