![1″ Min Bore, Right Hand A-PCLXR Indexable Boring Bar 8″ OAL, 3/4″ Shank Diam, Uses CXMG, A-PCLXR Inserts, Through Coolant](http://exactindustrialsupply.com/cdn/shop/products/4784753-21_1024x1024.jpg?v=1675051413)

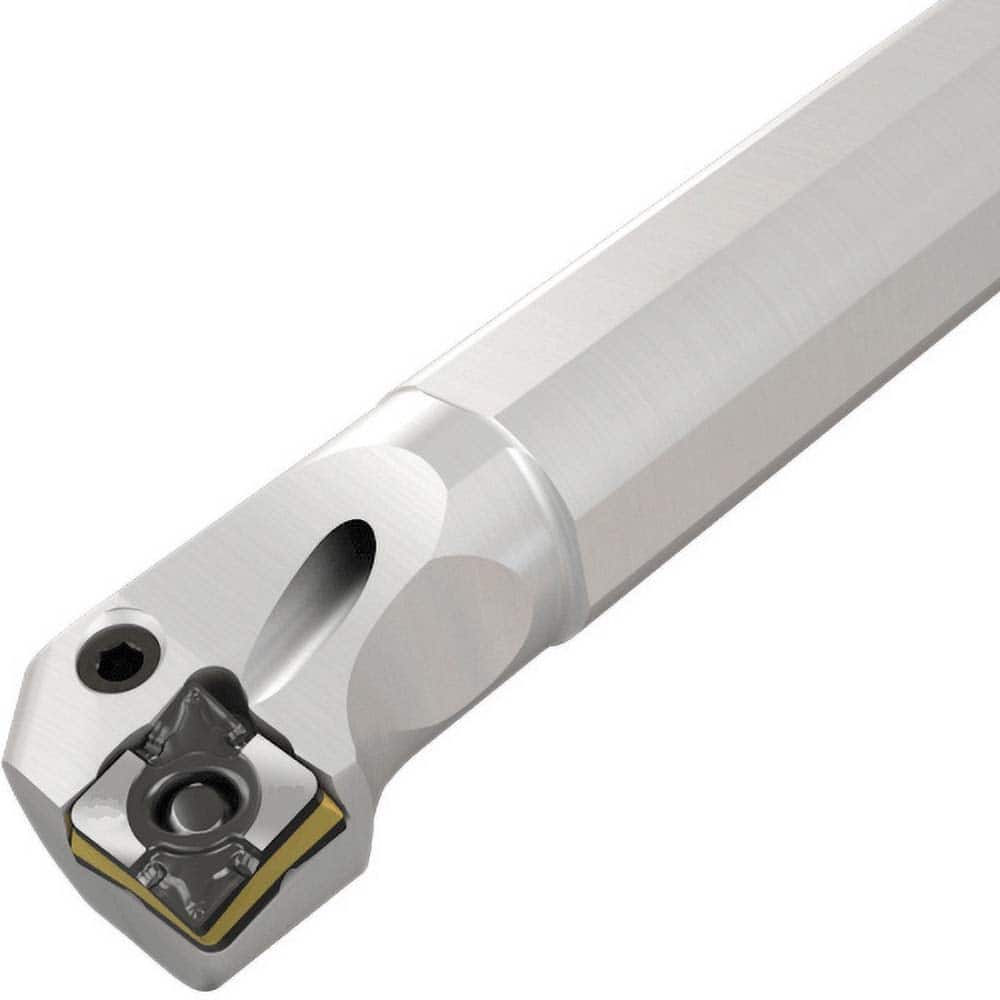

1″ Min Bore, Right Hand A-PCLXR Indexable Boring Bar 8″ OAL, 3/4″ Shank Diam, Uses CXMG, A-PCLXR Inserts, Through Coolant
Item #: 47847538
Brand: Iscar
Model #: 3346713
Product Specifications
Minimum Bore Diameter (Decimal Inch) | 1.0000 |
Minimum Bore Diameter (Inch) | 1 |
Maximum Bore Depth (Decimal Inch) | 1.1800 |
Toolholder Style | A-PCLXR |
Insert Compatibility | CXMG |
Shank Diameter (Decimal Inch) | 0.7500 |
Hand of Holder | Right Hand |
Shank Diameter (Inch) | 3/4 |
Overall Length (Decimal Inch) | 8.0000 |
Overall Length (Inch) | 8 |
Insert Holding Method | Lever |
Compatible Insert Shape | Diamond |
Rake | Positive (Radial); Positive (Axial) |
Cutting Direction | Right Hand |
Series | Isoturn |
Multi-use Tool | No |
Cutting Tool Application | Turning |
Center to Cutting Edge (Decimal Inch) | 0.5120 |
Standards | ISO 13399 |
Number of Inserts Used on Toolholder | 1 |
Maximum Bore Diameter (mm) | 76.20 |
Maximum Bore Diameter (Decimal Inch) | 3.0000 |
Number of Inserts Included in Order | 0 |
Coolant Through | Yes |
