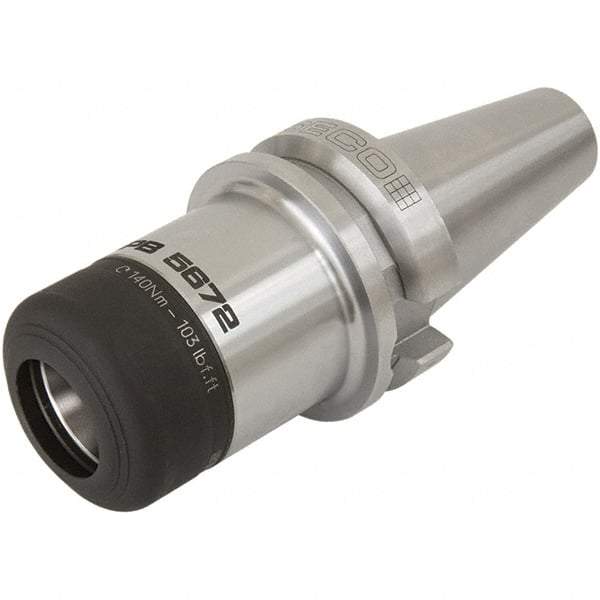

Seco - 9.5mm to 10mm Capacity, 133mm Projection, BT40 Dual Contact Taper, HP16 Collet Chuck - 225.4mm OAL
Item #: 47573498
Brand: Seco
Model #: 30287
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | HP |
| Collet Series | HP16 |
| Shank Type | Dual Contact Taper |
| Taper Size | BT40 |
| Projection (mm) | 133.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 9.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Overall Length (mm) | 225.40 |
| Nose Diameter (mm) | 30.00 |
| PSC Code | 5136 |
| Balanced to (RPM) | 3 |
| Collet Nut Diameter (mm) | 30.00 |
