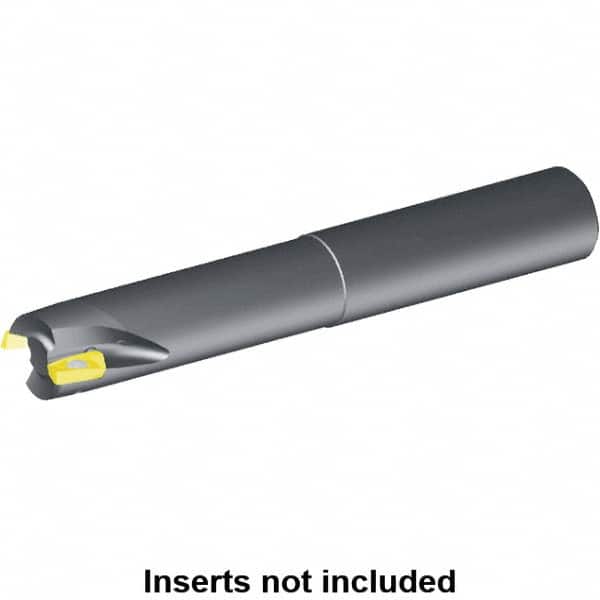

![34mm Cut Diam, 18mm Max Depth, 32mm Shank Diam, Cylindrical Shank, 250mm OAL, Indexable Square-Shoulder End Mill Mill 1-18 Toolholder, Uses EDCT 1805.. Insert Style, 0° Lead Angle, Through Coolant, Series Mill 1-18](http://exactindustrialsupply.com/cdn/shop/products/7300540-21_63722397-a7ed-48c7-842a-d96a2411b5c8_1024x1024.jpg?v=1675036533)
34mm Cut Diam, 18mm Max Depth, 32mm Shank Diam, Cylindrical Shank, 250mm OAL, Indexable Square-Shoulder End Mill Mill 1-18 Toolholder, Uses EDCT 1805.. Insert Style, 0° Lead Angle, Through Coolant, Series Mill 1-18
Item #: 47450697
Brand: Kennametal
Model #: 2963874
Product Specifications
Minimum Cutting Diameter (mm) | 34.00 |
Maximum Cutting Diameter (Decimal Inch) | 1.3390 |
Maximum Cutting Diameter (mm) | 34.00 |
Maximum Depth of Cut (mm) | 18.00 |
Cutter Style | Mill 1-18 |
Shank Type | Cylindrical |
Shank Diameter (mm) | 32.00 |
Insert Holding Method | Screw |
Overall Length (mm) | 250.00 |
Tool Material | Steel |
Series | Mill 1-18 |
Lead Angle | 0 |
Shank Length (mm) | 200.00 |
Head Length (mm) | 50.00 |
Maximum RPM | 31210 |
Coolant Hole Diameter (mm) | 6.50 |
Insert Compatibility | EDCT 1805.. |
ISO Number | 34A03R050A32SED18-250 |
Number Of Flutes | 3 |
Number Of Cutter Inserts | 3 |
Coolant Through | Yes |
