![CCMT09T308-FM6 WSM20S Turning Insert TiAlN+Al2O3+(Al) Finish, Neutral, 9.67mm Long, 9.53mm Inscribed Circle, 0.8mm Corner Radius, 3.97mm Thick, 80° Rhombic 80, Series CCMT-FM6](http://exactindustrialsupply.com/cdn/shop/products/4731083-21_b86dda07-d887-4b8e-975b-1bdd67acf22e_1024x1024.jpg?v=1675149266)

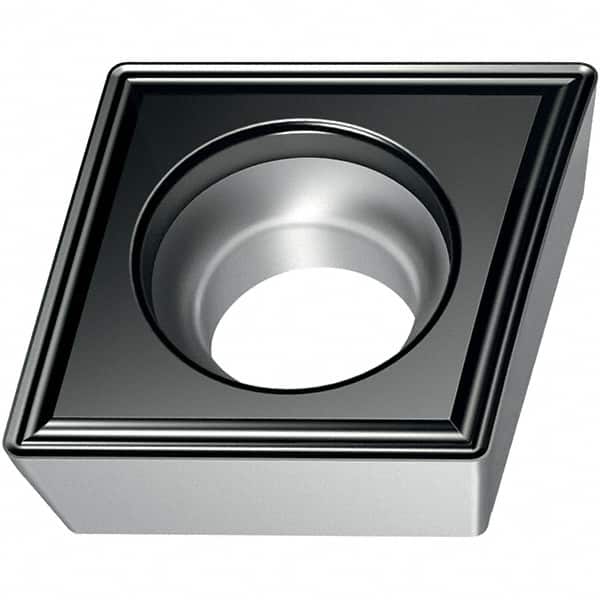

CCMT09T308-FM6 WSM20S Turning Insert TiAlN+Al2O3+(Al) Finish, Neutral, 9.67mm Long, 9.53mm Inscribed Circle, 0.8mm Corner Radius, 3.97mm Thick, 80° Rhombic 80, Series CCMT-FM6
Item #: 47337597
Brand: Walter
Model #: 7054135
Product Specifications
Insert Style | CCMT |
Insert Shape Code | C |
Insert Size Code | 09T308 |
Insert Shape | Diamond |
Clearance Code | C |
Tolerance Code | M |
Insert Material | Solid Carbide |
Manufacturer Grade | WSM20S |
Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
Hole Diameter (Decimal Inch) | 0.1730 |
Maximum Depth of Cut (mm) | 9.67 |
Maximum Depth of Cut (Decimal Inch) | 0.3810 |
Inscribed Circle (mm) | 9.53 |
Inscribed Circle (Decimal Inch) | 0.3750 |
Insert Hand | Neutral |
Insert Thickness | 3.97 |
Insert Thickness (Decimal Inch) | 0.1560 |
Corner Radius (mm) | 0.80 |
Corner Radius (Decimal Inch) | 0.0310 |
Included Angle | 80.0 |
Relief Angle | 7 |
Series | CCMT-FM6 |
Coating Process | PVD |
Length Range (Decimal Inch) | 0.3000 - 0.4000 |
Rake | Positive |
Insert Length (Decimal Inch) | 0.3810 |
Insert Length (mm) | 9.67 |
Primary Workpiece Material | Stainless Steel |
Primary Workpiece Material Code | S; M |
Secondary Workpiece Material | Steel |
Secondary Workpiece Material Code | P |
Ansi Code | CCMT3(2.5)2FM6WSM20S |
Iso Code | CCMT09T308-FM6 WSM20S |
Standards | ISO; ANSI |
Manufacturers Catalog Number | 7054135 |
Cutting Direction | Neutral |
Proprietary Coating Designation | WSM20S |
Chip Breaker | FM6 |
Coating/Finish | Al; TiAlN; Al2O3 |
![]() | |
MSC Part # | 47337597 |
Mfr Part # | 7054135 |
Country of OriginCountry of Origin is subject to change | Germany |
