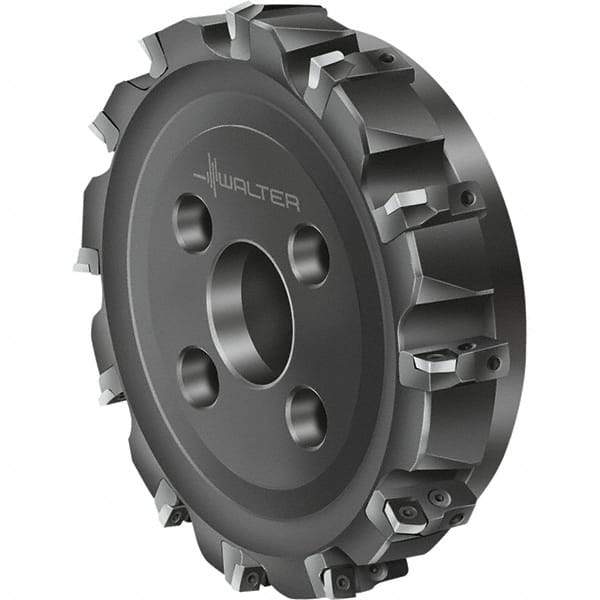

Walter - 8 Inserts, 125mm Cut Diam, 40mm Arbor Diam, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, Series F2010-B2-P2903-2R
Item #: 47305032
Brand: Walter
Model #: 5000478
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9210 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5750 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4800 |
| Series | F2010-B2-P2903-2R |
| Through Coolant | No |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Number of Flutes | 8 |
| Maximum RPM | 5400 |
| Cutting Edge Length (Decimal Inch) | 0.3540 |
| Toolholder Material | Steel |
