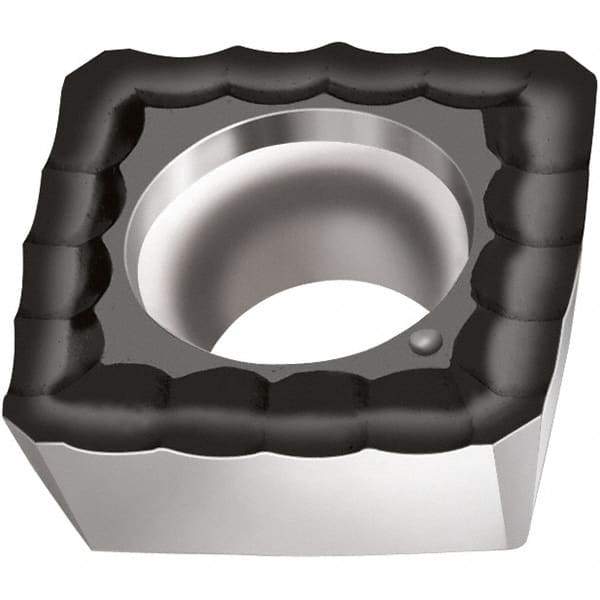

Walter - Milling Tip Insert Holder & Shank - TiAlN+Al2O3+(Al) Finish, 6.35mm Inscribed Circle
Item #: 47298112
Brand: Walter
Model #: 6863944
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.000 |
| Coating Process | PVD |
| Coating | TiAlN+Al2O3+(Al) |
| Chipbreaker | E67 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | WSP45S |
| Length (mm) | 6.35 |
| Relief Angle | 14 |
| Length (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0940 |
