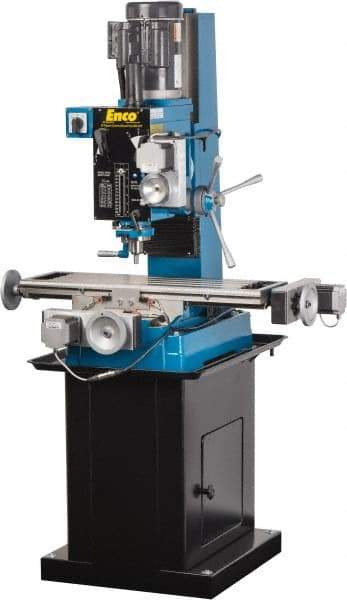

Value Collection - Single Phase, 1,970 RPM, 220 Volt, CNC Mill Drill Machine - 31-1/2" Long x 9-1/2" Wide Table
Item #: 47251707
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Phase | 1 |
| Table Length (Inch) | 31-1/2 |
| Table Width (Inch) | 9-1/2 |
| Longitudinal Travel (Decimal Inch) | 22.0000 |
| Cross Travel (Decimal Inch) | 8.0000 |
| Number of Spindle Speeds | 6 |
| Minimum Spindle Speed (RPM) | 120.00 |
| Maximum Spindle Speed (RPM) | 1970 |
| Spindle Travel Length (Decimal Inch) | 4.7500 |
| Spindle Taper Size | R8 |
| Drilling Capacity in Steel (Inch) | 1-9/16 |
| Quill Diameter (Decimal Inch) | 3.0000 |
| Minimum Spindle to Table Distance (Inch) | 0 |
| Maximum Spindle to Table Distance (Inch) | 18-3/4 |
| Number of T-Slots | 3 |
| T-Slot Size (Inch) | 5/8 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Horsepower (HP) | 2 |
| Voltage | 220 |
| Overall Length (Inch) | 77 |
| Overall Depth (Inch) | 31 |
