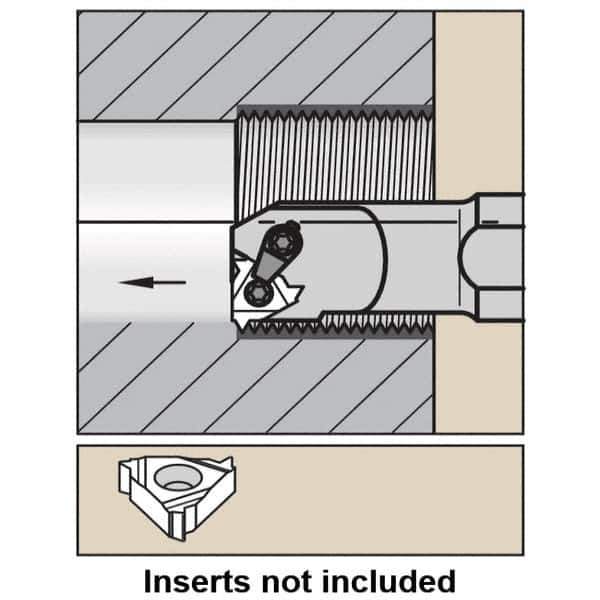

Kennametal - Internal Thread, Left Hand Cut, 32mm Shank Width x 30.82mm Shank Height Indexable Threading Toolholder - 250mm OAL, LT 16NL Insert Compatibility, A-LSE Toolholder, Series LT Threading
Item #: 46889408
Brand: Kennametal
Model #: 1612586
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 30.82 |
| Shank Height (Decimal Inch) | 1.2134 |
| Overall Length (Decimal Inch) | 9.8425 |
| Overall Length (mm) | 250.00 |
| Insert Compatibility | LT 16NL |
| Series | LT Threading |
| Toolholder Style | A-LSE |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 29.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1417 |
| Center to Cutting Edge (mm) | 16.30 |
| Center to Cutting Edge (Decimal Inch) | 0.6417 |
| Neck Diameter (Decimal Inch) | 0.9843 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
