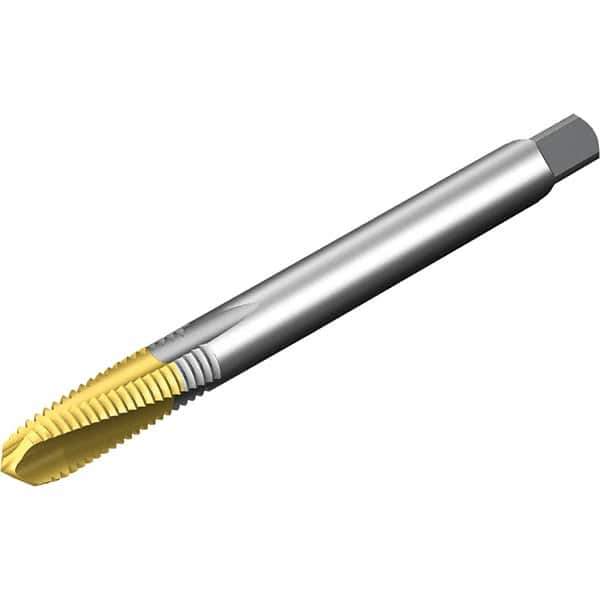

Sandvik Coromant - 3 Flute 6HX Spiral Flute Tap - Powdered Metal High Speed Steel, TiN Finish
Item #: 46633202
Brand: Sandvik Coromant
Model #: 7382662
Exact Tooling IR#: 04
Features and Benefits
Powdered metal high speed steel is a durable and wear-resistant material used in general purpose applications. It is commonly used on low-carbon alloys and mild steels.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Material | Powdered Metal High Speed Steel |
| Finish/Coating | TiN |
| Through Coolant | NonThrough Coolant |
| Helix Angle | 10 |
| Thread Length (Decimal Inch) | 0.3150 |
| Thread Length (mm) | 8.00 |
| Tapping Depth (Decimal Inch) | 0.3150 |
| Tapping Depth (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Shank Diameter (mm) | 3.50 |
