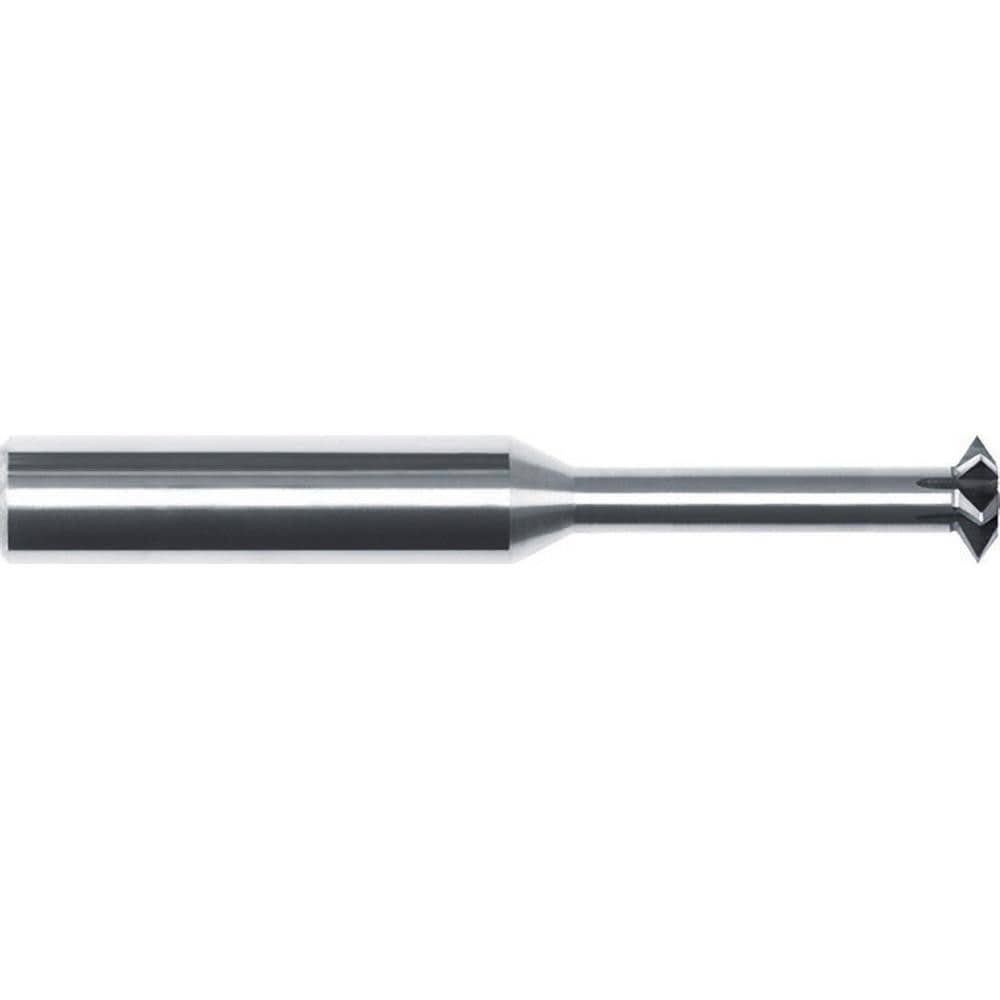

Single Profile Thread Mills; Maximum Threads Per Inch: 64; Minimum Pitch (Decimal Inch): 0.0313; Minimum Threads Per Inch: 32; Maximum Pitch (Decimal Inch): 0.0156; Material: Solid Carbide; Thread Type: Internal, External
Item #: 73559064
Brand: Internal Tool
Model #: 88-0870-C
Product Specifications
Maximum Threads Per Inch | 64 |
Minimum Pitch (Decimal Inch) | 0.0313 |
Minimum Threads Per Inch | 32 |
Maximum Pitch (Decimal Inch) | 0.0156 |
Material | Solid Carbide |
Thread Type | Internal; External |
Thread Size | #5-44 |
Thread Depth (Decimal Inch) | 0.2500 |
Shank Diameter (Inch) | 1/8 |
Shank Diameter (Decimal Inch) | 0.1250 |
Cutting Diameter (Decimal Inch) | 0.0980 |
Length of Cut (Inch) | 1/4 |
Minimum Nominal Diameter (Inch) | 0.0980 |
Overall Length (Decimal Inch) | 2.0000 |
Overall Length (Inch) | 2 |
Material Grade | Micrograin |
Neck Diameter (Decimal Inch) | 0.0500 |
Neck Length (Decimal Inch) | 0.2500 |
Series | 88 |
Thread Standard | UN |
Number Of Flutes | 3 |
Coolant Through | No |
Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
Coating/Finish | AlTiN |
UNSPSC Code | 23242117 |
Maximum Threads Per Inch | 64 |
Minimum Pitch (Decimal Inch) | 0.0313 |
Minimum Threads Per Inch | 32 |
Maximum Pitch (Decimal Inch) | 0.0156 |
Material | Solid Carbide |
Thread Type | Internal; External |
Thread Size | #5-44 |
Thread Depth (Decimal Inch) | 0.2500 |
Shank Diameter (Inch) | 1/8 |
Shank Diameter (Decimal Inch) | 0.1250 |
Cutting Diameter (Decimal Inch) | 0.0980 |
Length of Cut (Inch) | 1/4 |
Minimum Nominal Diameter (Inch) | 0.0980 |
Overall Length (Decimal Inch) | 2.0000 |
Overall Length (Inch) | 2 |
Material Grade | Micrograin |
Neck Diameter (Decimal Inch) | 0.0500 |
Neck Length (Decimal Inch) | 0.2500 |
Series | 88 |
Thread Standard | UN |
Number Of Flutes | 3 |
Coolant Through | No |
Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
Coating/Finish | AlTiN |
UNSPSC Code | 23242117 |
MSC Part # | 73559064 |
Mfr Part # | 88-0870-C |
Country of Origin Country of Origin is subject to change | UNITED STATES |
