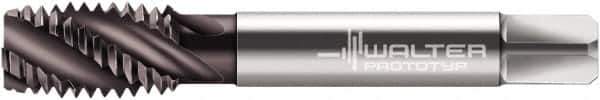

Walter-Titex - 7/16-20 UNF 3 Flute 3B Modified Bottoming Spiral Flute Tap - Cobalt, Oxide Finish, 3-5/32" OAL, Right Hand Flute, Right Hand Thread, Series A23553
Item #: 45102738
Brand: Walter-Titex
Model #: 5081004
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 7/16-20 |
| Chamfer | Modified Bottoming |
| Class of Fit | 3B |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.1563 |
| Overall Length (Inch) | 3-5/32 |
| Overall Length (mm) | 80.17 |
| Helix Angle | 40 |
| Thread Standard | UNF |
| Material Grade | M35 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.8660 |
| Thread Length (mm) | 22.00 |
| Flute Type | Fast Spiral |
| Series/List | A23553 |
| Neck Length (Decimal Inch) | 0.2953 |
| Tapping Depth (Decimal Inch) | 1.1614 |
| Tapping Depth (mm) | 29.50 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Shank Diameter (mm) | 8.20 |
| Square Length (Inch) | 13/32 |
| Material Application | Cast Steel; Gray Cast Iron; Malleable Cast Iron; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron |
