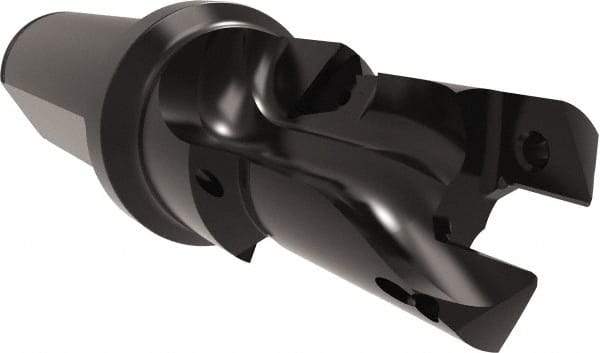

Allied Machine and Engineering - 20 to 22mm Diam, Straight Shank, 25.4mm Body Shank Diam, Combo Chamfer and Countersink Drill - TCMT 110204 Insert, 115.49mm OAL
Item #: 43937143
Brand: Allied Machine and Engineering
Model #: 60120C45-100F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.8660 |
| Minimum Drill Diameter (mm) | 20.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7874 |
| Body Shank Diameter (mm) | 25.40 |
| Body Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 1 |
| Insert Style | TCMT 110204 |
| Body Diameter (mm) | 27.38 |
| Body Diameter (Decimal Inch) | 1.0781 |
| Overall Length (mm) | 115.49 |
| Overall Length (Decimal Inch) | 4.5469 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 57.94 |
| Shank Length (Decimal Inch) | 2.2813 |
| Through Coolant | Through Coolant |
| Series | 20; GEN3SYS; GEN3SYS XT |
