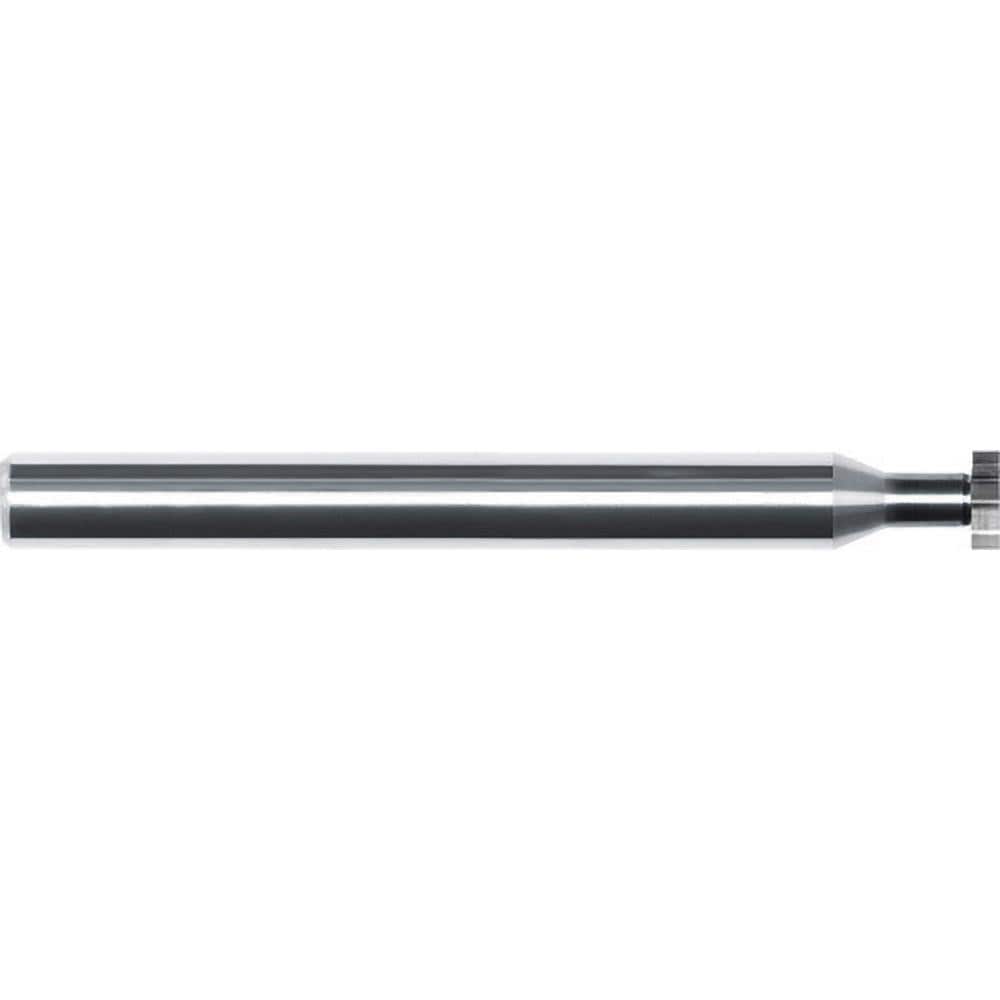

Woodruff Keyseat Cutter: 3/4" Cut Dia, 1/16" Cut Width, 1/2" Shank Dia, Straight Tooth

Woodruff Keyseat Cutter: 3/4" Cut Dia, 1/16" Cut Width, 1/2" Shank Dia, Straight Tooth


Item #: 91050922
Brand: Internal Tool
Model #: 74-0210

Product Specifications

Connection Type Shank
Cutter Material Solid Carbide
Cutter Diameter (Inch) 3/4
Cutter Diameter (Decimal Inch) 0.7500
Tooth Configuration Straight
Cutting Width (Inch) 1/16
Cutting Width (Decimal Inch) 0.0625
Weldon Flat No
Neck Diameter (Decimal Inch) 0.2800
Neck Length (Decimal Inch) 0.2500
Shank Diameter (Inch) 1/2
Shank Diameter (Decimal Inch) 0.5000
Overall Length (Inch) 6
Overall Length (Decimal Inch) 6.0000
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Cutter Material Grade Micrograin
Series 74
Coating/Finish Bright/Uncoated
Number Of Teeth 10
UNSPSC Code 23241631
Country of Origin UNITED STATES
$116.10
