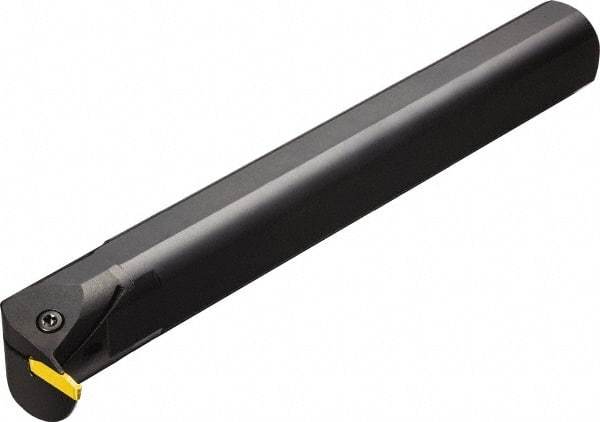

Sandvik Coromant - AG123, Internal, Left Hand, 10.92mm Max Depth of Cut, 4mm Max Groove Width, Indexable Grooving Tool Holder - N123..GM Insert Compatibility, 1.46" Shank Height, 11.811" OAL, Through Coolant
Item #: 42937243
Brand: Sandvik Coromant
Model #: 5734715
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Internal or External | Internal |
Toolholder Type | NonFace Grooving |
Hand of Holder | Left Hand |
Maximum Depth of Cut (Decimal Inch) | 0.4300 |
Maximum Depth of Cut (mm) | 10.92 |
Maximum Groove Width (mm) | 4.00 |
Maximum Groove Width (Decimal Inch) | 0.1575 |
Overall Length (Decimal Inch) | 11.8110 |
Toolholder Style | AG123 |
Insert Compatibility | N123..GM |
Shank Height (Decimal Inch) | 1.4600 |
Series | CoroCut 1-2 |
Through Coolant | Coolant Through |
Multi-Use Tool | Yes |
Multi-Use Application | Grooving; Parting |
Coolant Hole Diameter (Decimal Inch) | 0.4720 |
Insert Holding Method | Screw |
Insert Seat Size | H |
Minimum Hole Diameter (Decimal Inch) | 1.9685 |
Maximum Hole Depth (Decimal Inch) | 2.1650 |
Maximum Bore Depth (Decimal Inch) | 2.1650 |
igrvh Maximum Bore Depth (mm) | 55.00 |
Back of Bar to Cutting Edge (Decimal Inch) | 0.7280 |
Center to Cutting Edge (Decimal Inch) | 1.2205 |
Head Length (Decimal Inch) | 2.1654 |
Shank Length (Decimal Inch) | 9.6457 |
Manufacturers Catalog Number | LAG123H043-24B |
Height to Shank Top (Decimal Inch) | 1.4570 |
Toolholder Material | Steel |
Complete Insert Compatibility | L123H2-0400-05; LG123H1-02; LG123H1-0200-0002-G; LG123H1-0200-0010-R; LG123H1-03; LG123H1-0300-0002-G; LG123H1-0300-0015-R; LG123H1-0400-0004-G; LG123H1-0400-0020-R; N123H1-04; N123H1-0400-00; N123H1-040004S; N123H1-0400S; N123H1-0470-00; N123H1-05; N123H |
Minimum Bore Diameter (Decimal Inch) | 1.9680 |
Minimum BoreDiameter (mm) | 50.00 |
Shank Diameter (Decimal Inch) | 1.5000 |
