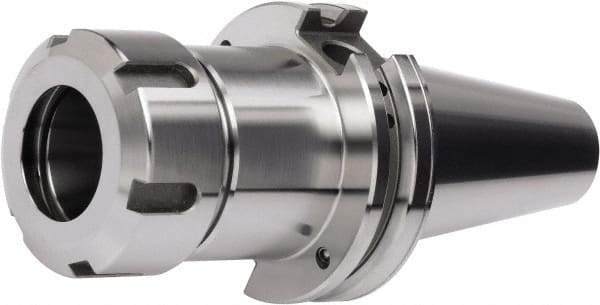

Accupro - 2mm to 20mm Capacity, 8" Projection, CAT50 Dual Contact Taper, ER32 Collet Chuck - 12" OAL
Item #: 42832006
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Dual Contact Taper |
| Taper Size | CAT50 |
| Projection (Inch) | 8 |
| Projection (Decimal Inch) | 8.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0780 |
| Minimum Collet Capacity (mm) | 2.00 |
| Maximum Collet Capacity (mm) | 20.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.7970 |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Nose Diameter (mm) | 50.03 |
| Nose Diameter (Decimal Inch) | 1.9700 |
| Maximum RPM | 25000 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.0050 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.9700 |
| Collet Nut Diameter (mm) | 50.03 |
