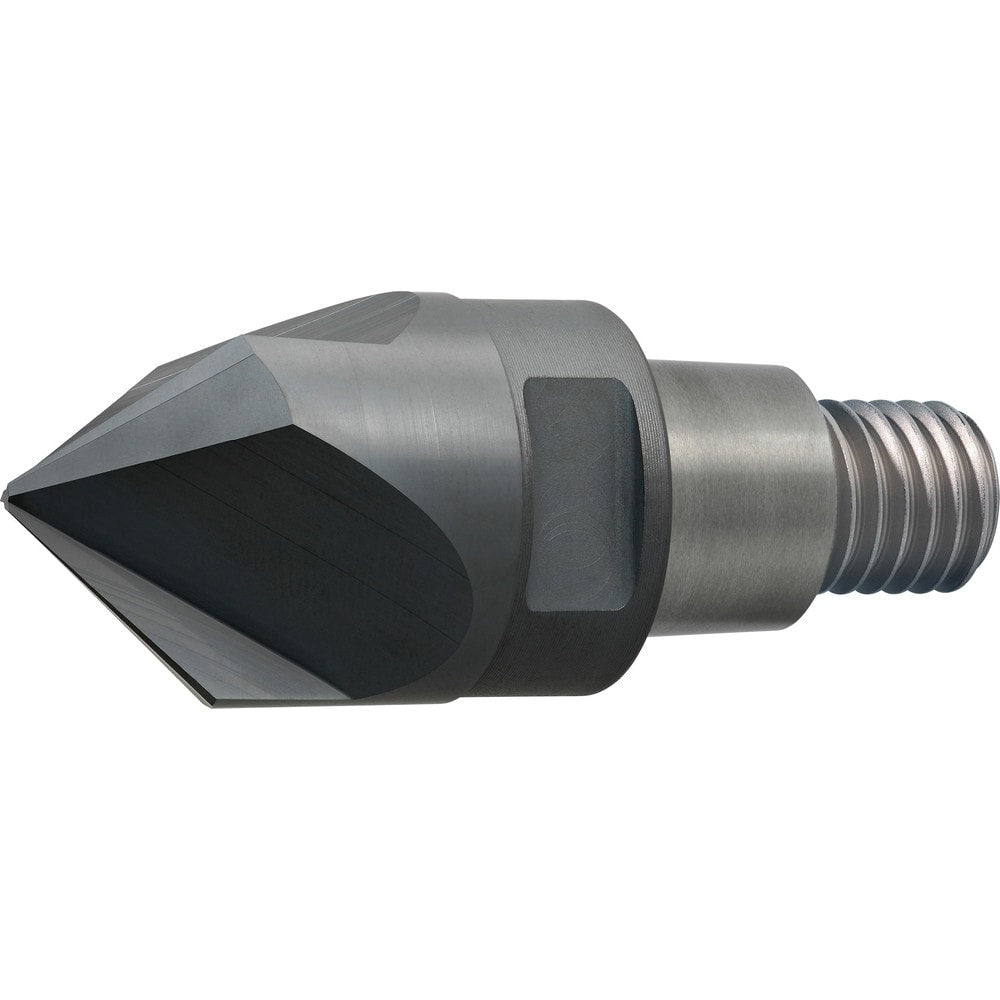

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 10.00; Chamfer Width (mm): 4.200; Chamfer Width (Decimal Inch): 0.165; Chamfer Angle: 45.000; Length of Cut (mm): 4.2000; Number Of Flutes: 3
Item #: 32535064
Brand: Mitsubishi
Model #: 10520758
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Chamfer Width (mm) | 4.200 |
| Chamfer Width (Decimal Inch) | 0.165 |
| Chamfer Angle | 45.000 |
| Length of Cut (mm) | 4.2000 |
| Number Of Flutes | 3 |
| Overall Length (mm) | 16.0000 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Overall Length (Decimal Inch) | 0.6299 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Centercutting | No |
| Connection Type | iMX10 |
| Flute Type | Straight |
| Series | iMX |
| Helix Angle | 4.5 |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1654 |
| UNSPSC Code | 27112803 |
