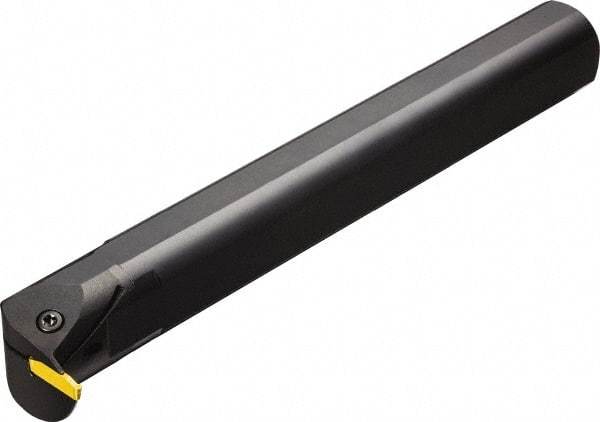

Sandvik Coromant - AG123, Internal, Left Hand, 10.92mm Max Depth of Cut, 3mm Max Groove Width, Indexable Grooving Tool Holder - N123..GM Insert Compatibility, 1.46" Shank Height, 11.811" OAL, Through Coolant
Item #: 42231688
Brand: Sandvik Coromant
Model #: 5734803
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Internal or External | Internal |
Toolholder Type | NonFace Grooving |
Hand of Holder | Left Hand |
Maximum Depth of Cut (Decimal Inch) | 0.4300 |
Maximum Depth of Cut (mm) | 10.92 |
Maximum Groove Width (mm) | 3.00 |
Maximum Groove Width (Decimal Inch) | 0.1181 |
Overall Length (Decimal Inch) | 11.8110 |
Toolholder Style | AG123 |
Insert Compatibility | N123..GM |
Shank Height (Decimal Inch) | 1.4600 |
Series | CoroCut 1-2 |
Through Coolant | Coolant Through |
Multi-Use Tool | Yes |
Multi-Use Application | Grooving; Parting |
Coolant Hole Diameter (Decimal Inch) | 0.4720 |
Insert Holding Method | Screw |
Insert Seat Size | G |
Minimum Hole Diameter (Decimal Inch) | 1.9685 |
Maximum Hole Depth (Decimal Inch) | 2.1650 |
Maximum Bore Depth (Decimal Inch) | 2.1650 |
igrvh Maximum Bore Depth (mm) | 55.00 |
Back of Bar to Cutting Edge (Decimal Inch) | 0.7280 |
Center to Cutting Edge (Decimal Inch) | 1.1890 |
Head Length (Decimal Inch) | 2.1654 |
Shank Length (Decimal Inch) | 9.6457 |
Manufacturers Catalog Number | LAG123G043-24B |
Height to Shank Top (Decimal Inch) | 1.4570 |
Toolholder Material | Steel |
Complete Insert Compatibility | L123G2-0300-0501-CF; L123G2-0300-0502-CM; L123G2-0300-0503-CR; L123G2-0300-1001-CS; L123G2-0300-1501-CS; N123G1-0300-0002-CM; N123G1-0300-0002-GE; N123G1-0300-0003-CR; N123G1-0300-0003-TF; N123G1-030004S01025; N123G1-0318-0002-GE; N123G1-0400-RM; N123G2-0 |
Minimum Bore Diameter (Decimal Inch) | 1.9680 |
Minimum BoreDiameter (mm) | 50.00 |
Shank Diameter (Decimal Inch) | 1.5000 |
