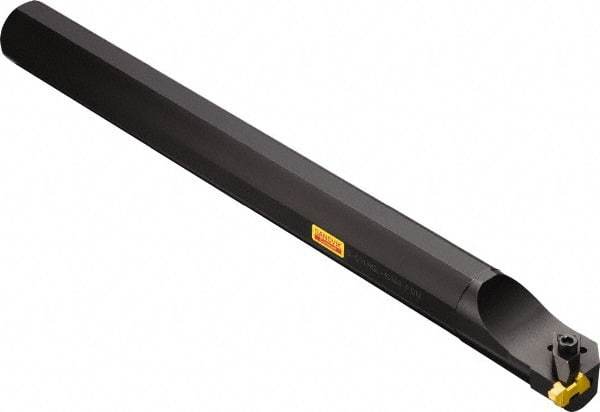

Sandvik Coromant - 34.95mm Min Bore Diam, 12" OAL, 1" Shank Diam, SI Indexable Boring Bar - TLG-3189L Insert, Screw Clamping Holding Method
Item #: 41914185
Brand: Sandvik Coromant
Model #: 5749328
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | SI |
| Series | Top Lok |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 1.3760 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 1.3760 |
| Minimum Bore Diameter (mm) | 34.95 |
| Minimum Bore Diameter (Decimal Inch) | 1.3760 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | TLG-3189L |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0 |
| Neck Diameter (Inch) | 1 |
| Back of Bar to Cutting Edge (mm) | 304.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 12.0000 |
| Center to Cutting Edge (mm) | 17.48 |
| Center to Cutting Edge (Decimal Inch) | 0.6880 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TLG-3189L |
| Toolholder Material | Steel |
| Number of Inserts Included in Order | 0 |
