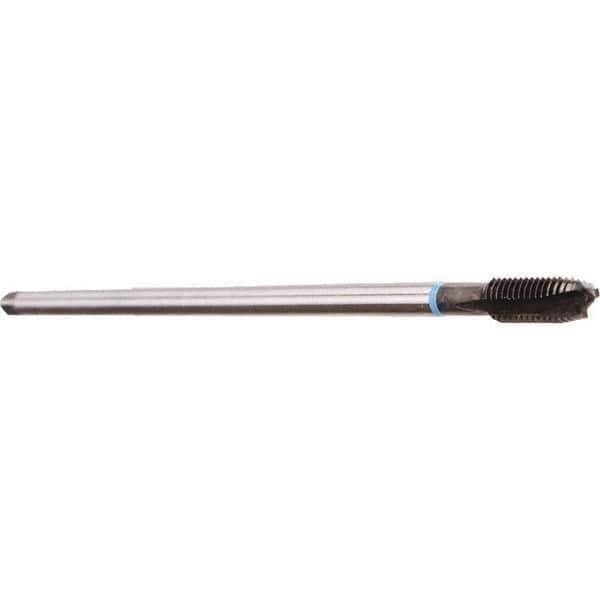

Emuge - M16x2.00 3 Flute Nitride Finish Cobalt Spiral Point Extension Tap - Plug Chamfer, 224mm OAL, 6H Class of Fit, Series Rekord B
Item #: 41812868
Brand: Emuge
Model #: C2203000.0116
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Spiral point taps are used for tapping through holes. They have a flute geometry that shoots chips ahead of the cutting action to reduce loading and clogging within the flute.
Nitride is a thin, hard shell coating that supports the surface hardness of high speed tools. It is commonly used on ferrous and non-ferrous metals including aluminum and cast iron.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size | M16x2.00 |
| Overall Length (mm) | 224.00 |
| Overall Length (Decimal Inch) | 8.819 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Tap Type | Spiral Point |
| Finish/Coating | Nitride |
| Flute Direction | Right Hand |
| Material | Cobalt |
| Thread Length (Decimal) | 1.0630 |
| Thread Direction | Right Hand |
| Series/List | Rekord B |
| Shank Size Type | Reduced |
