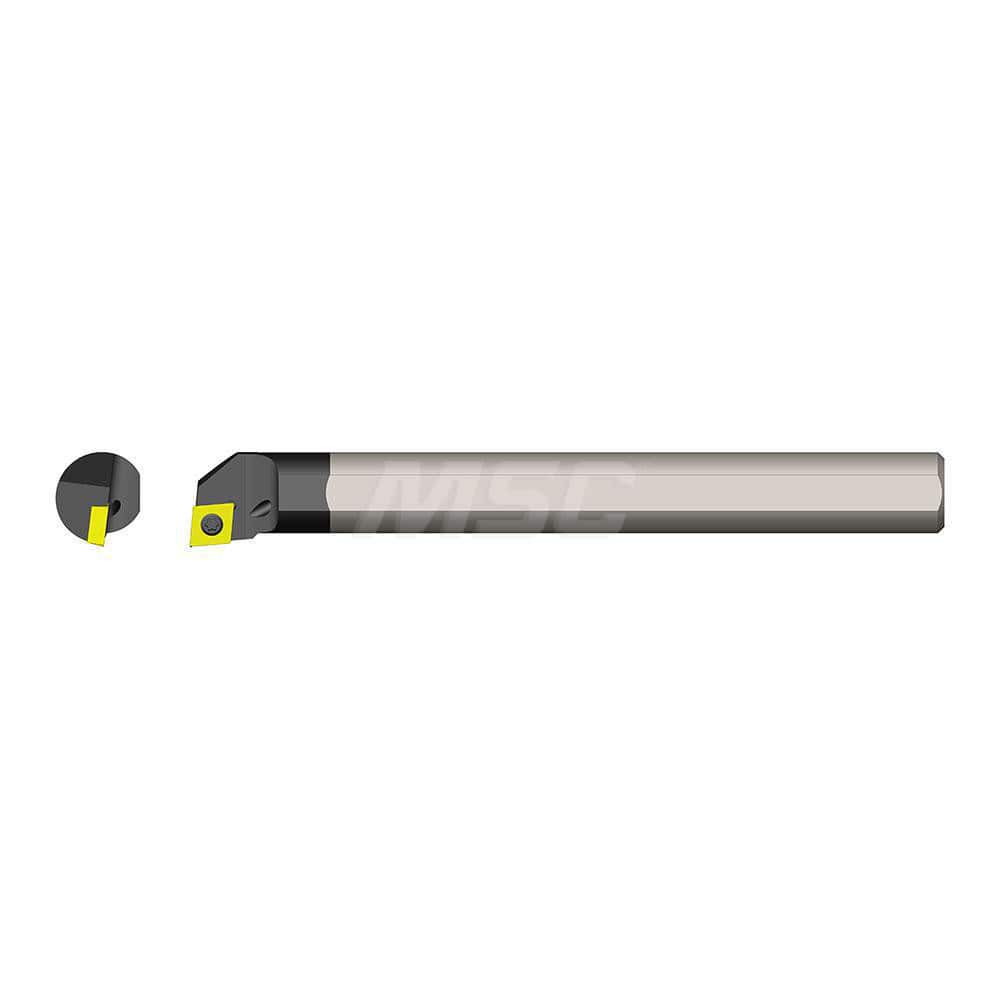

0.4″ Min Bore, Right Hand Indexable Boring Bar 6″ OAL, 3/8″ Shank Diam, -5° Lead Angle, Uses CPMT 21.51, Through Coolant
Item #: 41239740
Brand: Ultra-Dex
Model #: 920-000-153
Product Specifications
Minimum Bore Diameter (Decimal Inch) | 0.4000 |
Tool Material | Solid Carbide |
Insert Compatibility | CPMT 21.51 |
Hand of Holder | Right Hand |
Shank Diameter (Inch) | 3/8 |
Overall Length (Decimal Inch) | 6.0000 |
Overall Length (Inch) | 6 |
Compatible Insert Size Code | 21.51 |
Insert Holding Method | Screw |
Compatible Insert Shape | Diamond |
Rake | Positive |
Cutting Direction | Right Hand |
Lead Angle | -5.00 |
Insert Inscribed Circle (Decimal Inch) | 0.2500 |
Multi-use Tool | No |
Cutting Tool Application | Boring |
Center to Cutting Edge (Decimal Inch) | 0.2030 |
Insert Thickness (Decimal Inch) | 0.0940 |
Coolant Through | Yes |
