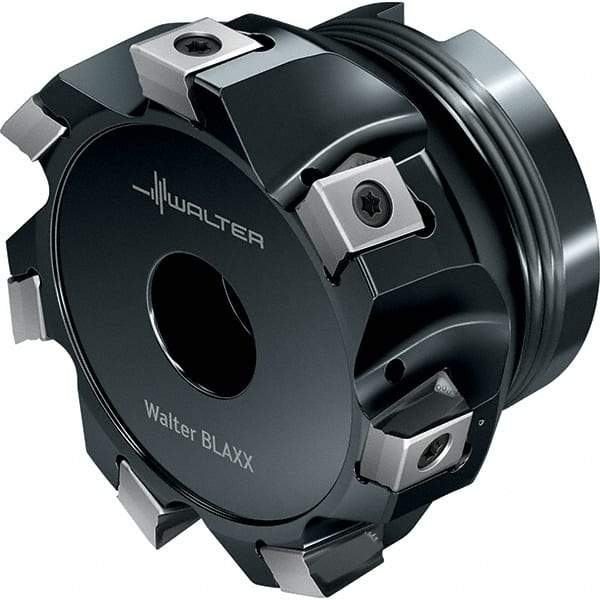

Walter - 7 Inserts, 3" Cut Diam, 1" Arbor Diam, 0.48" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 1.969" High, LN.. 1306.. Insert Compatibility, Through Coolant, Series Blaxx
Item #: 40541054
Brand: Walter
Model #: 6196185
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | LN.. 1306.. |
| Series | Blaxx |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.4800 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | F5141 |
| Number of Flutes | 7 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | LNHU 130608R-L55T; LNHU 130608R-L85T; LNHU 130612R-L55T; LNHU 130616R-L55T; LNHU 130620R-L55T; LNHU 130625R-L55T; LNHU 130630R-L55T; LNHU 130632R-L55T |
