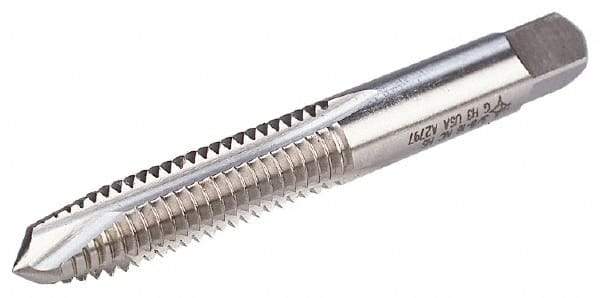

Cleveland - #8-32 UNC, 2 Flute, Bright Finish, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 2-1/8" OAL, 19.05mm Thread Length, 2B Class of Fit, Series 1053
Item #: 40215261
Brand: Cleveland
Model #: C57361
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #8-32 |
| Number of Flutes | 2 |
| Chamfer | Plug |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Finish/Coating | Bright |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.1250 |
| Overall Length (Inch) | 2-1/8 |
| Oversize | No |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.3800 |
| Thread Length (mm) | 19.05 |
| Series/List | 1053 |
| Style | Low Sheer |
| Material Application | Alloy Steel; Cast Iron; High Carbon Steel; Tool Steel |
