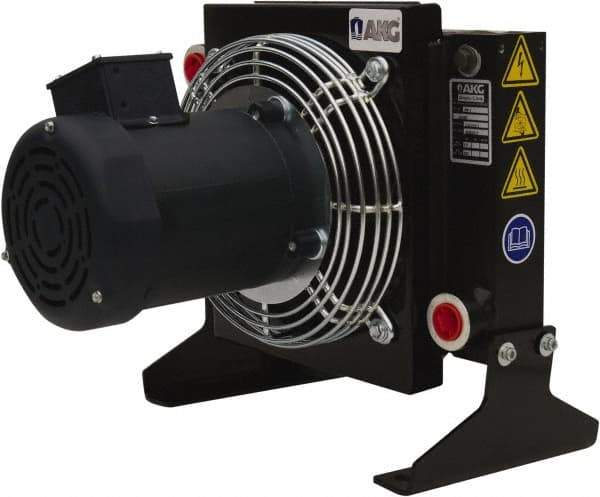

AKG Thermal Systems - SAE #12, 1 Fan Mount, Liquid-To-Air Aluminum Brazed Process Equipment Heat Exchanger - Oil Cooler, Ethylene Glycol/Water Mixture Cooler, 13.74" High x 13.78" Wide x 12.56" Deep, 250°F Max
Item #: 39825526
Brand: AKG Thermal Systems
Model #: AL5-1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Heat Exchanger Type | Liquid-To-Air |
| Style | Aluminum Brazed |
| Recommended Cooling Fluids | Oils & Ethylene Glycol/Water Mixture |
| Connection Size | SAE #12 |
| Number of Fan Mountings | 1 |
| Height (Inch) | 13.74 |
| Width (Decimal Inch) | 13.7800 |
| Depth (Inch) | 12.5600 |
| Maximum Temperature (F) | 250.000 |
| Connection Type | SAE Thread |
| Fluid Circuit Material | Aluminum |
| BTU/Hour 2 | 12734 |
| Flow Rate | 2 - 30 GPM |
| Maximum Working Pressure (psi) | 377.00 |
| Voltage | 115/230 VAC |
| Horsepower | 1/4 |
