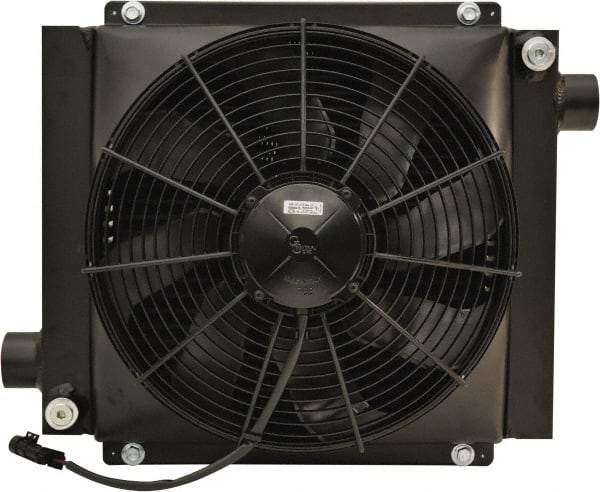

AKG Thermal Systems - SAE #20, 1 Fan Mount, Liquid-To-Air Aluminum Brazed Process Equipment Heat Exchanger - Oil Cooler, Ethylene Glycol/Water Mixture Cooler, 17" High x 19.69" Wide x 8.7" Deep, 76,401 BTU/Hr, 250°F Max
Item #: 39480488
Brand: AKG Thermal Systems
Model #: D30-12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Heat Exchanger Type | Liquid-To-Air |
| Style | Aluminum Brazed |
| Recommended Cooling Fluids | Oils & Ethylene Glycol/Water Mixture |
| Connection Size | SAE #20 |
| Number of Fan Mountings | 1 |
| Height (Inch) | 17 |
| Width (Decimal Inch) | 19.6900 |
| Depth (Inch) | 8.7000 |
| Maximum Temperature (F) | 250.000 |
| BTU/Hour | 76401 |
| Connection Type | SAE Thread |
| Fluid Circuit Material | Aluminum |
| Flow Rate | 4 - 50 GPM |
| Maximum Working Pressure (psi) | 377.00 |
| Voltage | 12 VDC |
| Horsepower | 0.48 |
