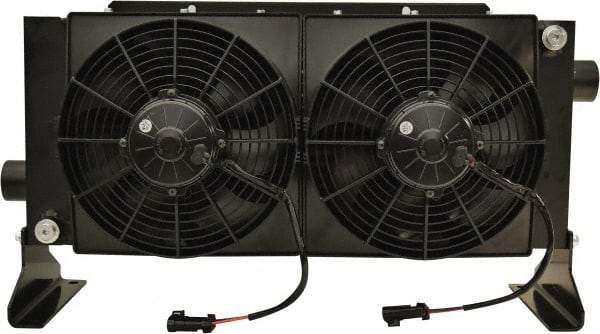

AKG Thermal Systems - SAE #20, 2 Fan Mount, Liquid-To-Air Aluminum Brazed Process Equipment Heat Exchanger - Oil Cooler, Ethylene Glycol/Water Mixture Cooler, 16" High x 28.35" Wide x 8.45" Deep, 114,601 BTU/Hr, 250°F Max
Item #: 39480462
Brand: AKG Thermal Systems
Model #: D45-12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Heat Exchanger Type | Liquid-To-Air |
| Style | Aluminum Brazed |
| Recommended Cooling Fluids | Oils & Ethylene Glycol/Water Mixture |
| Connection Size | SAE #20 |
| Number of Fan Mountings | 2 |
| Height (Inch) | 16 |
| Width (Decimal Inch) | 28.3500 |
| Depth (Inch) | 8.4500 |
| Maximum Temperature (F) | 250.000 |
| BTU/Hour | 114601 |
| Connection Type | SAE Thread |
| Fluid Circuit Material | Aluminum |
| Flow Rate | 8 - 80 GPM |
| Maximum Working Pressure (psi) | 377.00 |
| Voltage | 12 VDC |
| Horsepower | 0.19 |
