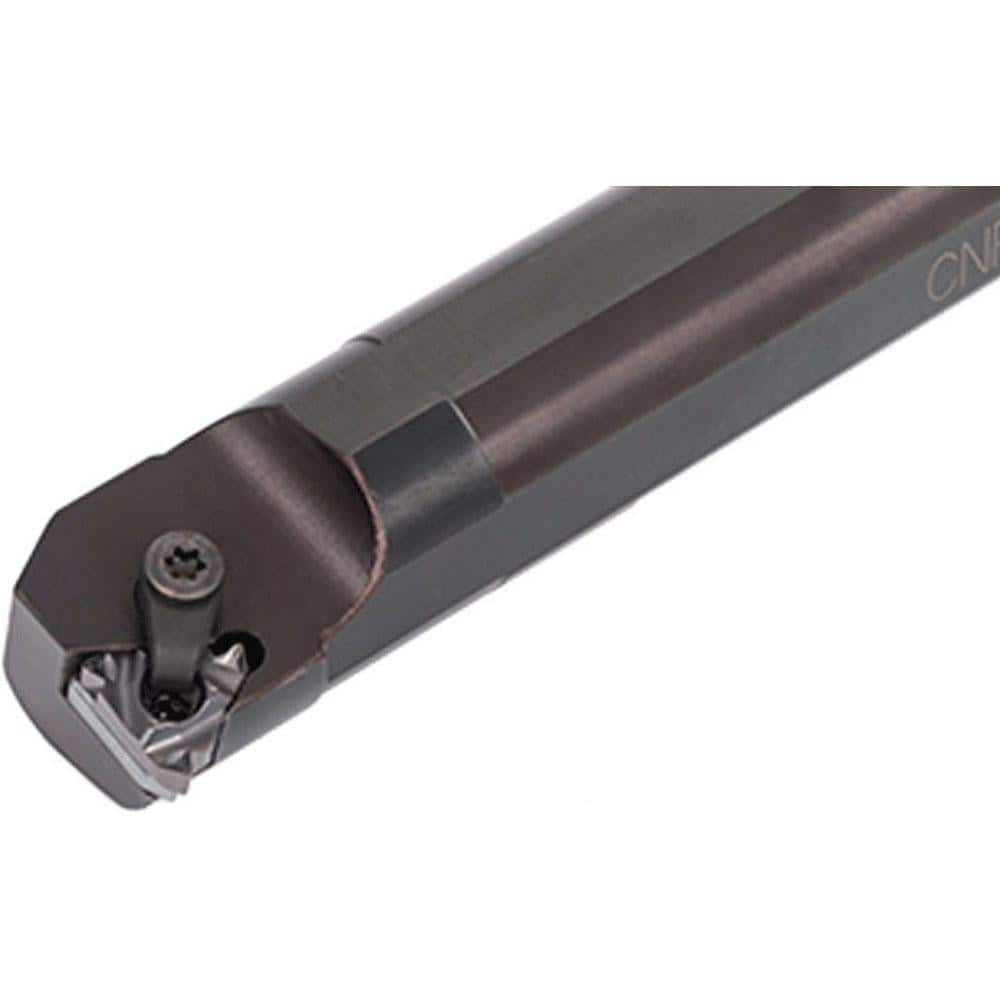

Indexable Threading Toolholder: Internal, Left Hand, 23 x 24 mm Shank Steel, 0.375″ Insert Inscribed Circle, Series CNL
Item #: 38927810
Brand: Tungaloy
Model #: 6801907
Product Specifications
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 16 |
| Shank Width/Diameter (mm) | 24.00 |
| Toolholder Style | CNL |
| Coolant Entry Style Code | 0 - Without Coolant |
| Insert Holding Method | Clamp |
| Shank Height (mm) | 23.00 |
| Shank Length (mm) | 200.00 |
| Overall Length (mm) | 200.00 |
| Minimum Bore Diameter (mm) | 29.00 |
| Series | CNL |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (mm) | 38.00 |
| Center to Cutting Edge (mm) | 16.50 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
