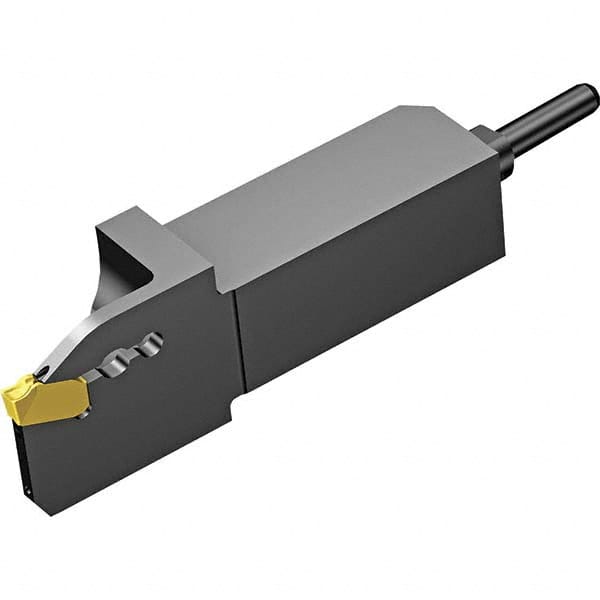

10mm Max Depth, 0 to 1″ Width, External Left Hand Nonface Grooving Toolholder 1″ OAL, 12 x 12mm Shank, Uses QD-NC Inserts, QS-QD Toolholder, Through Coolant, Series CoroCut QD
Item #: 38840054
Brand: Sandvik Coromant
Model #: 6427755
Product Specifications
Internal or External | External |
Toolholder Type | Non-Face Grooving |
Insert Seat Size | C |
Hand of Holder | Left Hand |
Maximum Depth of Cut (mm) | 10.00 |
Toolholder Style | QS-QD |
Maximum Groove Width (Decimal Inch) | 1.0000 |
Insert Compatibility | QD-NC |
Shank Width/Diameter (mm) | 12.00 |
Shank Height (mm) | 12.00 |
Series | Coro Cut QD |
Overall Length (Decimal Inch) | 1.0000 |
Back of Bar to Cutting Edge (mm) | 70.00 |
Head Height (mm) | 12.00 |
Coolant Through | Yes |
