Seco - BT30 Taper, M12x1.75 Thread, 45° Angle Radius, Standard Retention Knob - 1.693" OAL, 0.433" Knob Diam, 29/32" from Knob to Flange - Exact Industrial Supply

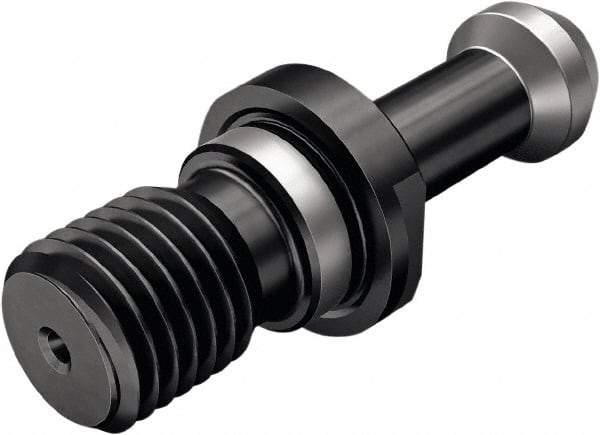

Seco - BT30 Taper, M12x1.75 Thread, 45° Angle Radius, Standard Retention Knob - 1.693" OAL, 0.433" Knob Diam, 29/32" from Knob to Flange


Item #: 38380036
Brand: Seco
Model #: 03119886
Exact Tooling IR#: 04

Features and Benefits

Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
Product Specifications
Type Standard
Taper Size BT30
Thread Size M12x1.75
Angle Radius 45.00
Knob Diameter (Decimal Inch) 0.4330
Through Coolant No
Neck Diameter (Decimal Inch) 0.2760
Overall Length (Decimal Inch) 1.6930
Knob to Flange Length (Decimal Inch) 0.9060
$25.64
