Seco - BT40 Taper, M16x2 Thread, 45° Angle Radius, Standard Retention Knob - 2.362" OAL, 0.591" Knob Diam, 1.378" from Knob to Flange, Through Coolant - Exact Industrial Supply

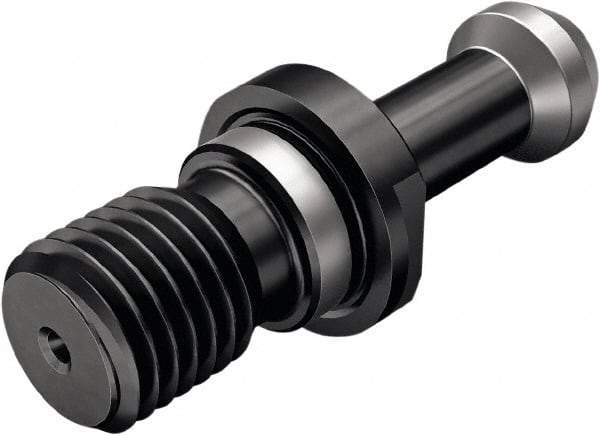

Seco - BT40 Taper, M16x2 Thread, 45° Angle Radius, Standard Retention Knob - 2.362" OAL, 0.591" Knob Diam, 1.378" from Knob to Flange, Through Coolant


Item #: 38379996
Brand: Seco
Model #: 03119895
Exact Tooling IR#: 04

Features and Benefits

Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
Product Specifications
Type Standard
Taper Size BT40
Thread Size M16x2
Angle Radius 45.00
Knob Diameter (Decimal Inch) 0.5910
Through Coolant Yes
Neck Diameter (Decimal Inch) 0.3940
Overall Length (Decimal Inch) 2.3620
Knob to Flange Length (Decimal Inch) 1.3780
$29.11
