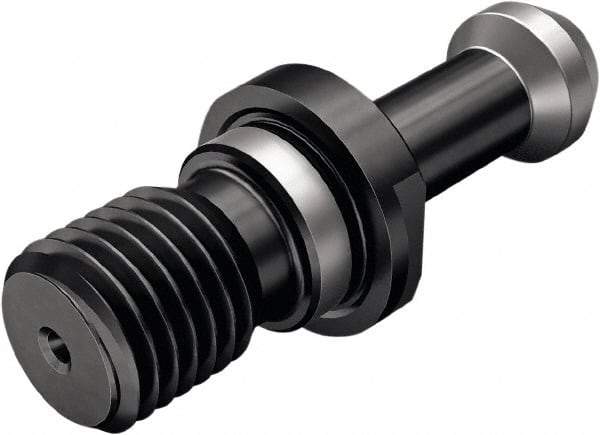

Seco - BT50 Taper, M24x3 Thread, 0° Angle Radius, Standard Retention Knob - 2.795" OAL, 0.945" Knob Diam, 1.22" from Knob to Flange, Through Coolant
Item #: 38379863
Brand: Seco
Model #: 03119933
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT50 |
| Thread Size | M24x3 |
| Angle Radius | 0.00 |
| Knob Diameter (Decimal Inch) | 0.9450 |
| Through Coolant | Yes |
| Neck Diameter (Decimal Inch) | 0.7090 |
| Overall Length (Decimal Inch) | 2.7950 |
| Knob to Flange Length (Decimal Inch) | 1.2200 |
