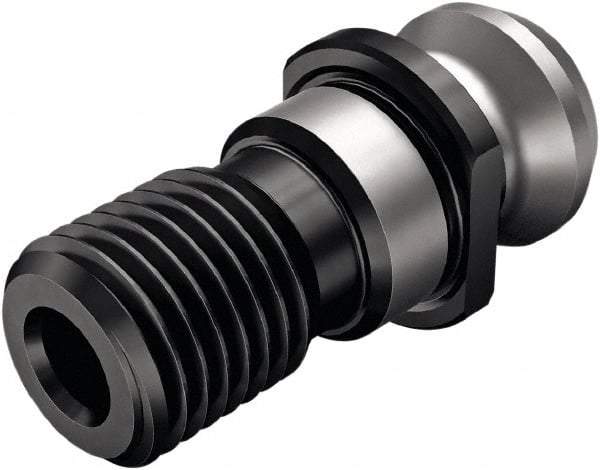

Seco - ANSI B5-50, DIN40, CAT40 Taper, M16x2 Thread, 45° Angle Radius, Standard Retention Knob - 1-1/2" OAL, 0.74" Knob Diam, 0.64" from Knob to Flange, Through Coolant
Item #: 38379657
Brand: Seco
Model #: 03119892
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | ANSI B5-50; DIN40; CAT40 |
| Thread Size | M16x2 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.7400 |
| Through Coolant | Yes |
| Neck Diameter (Decimal Inch) | 0.5040 |
| Overall Length (Decimal Inch) | 1.4960 |
| Knob to Flange Length (Decimal Inch) | 0.6400 |
