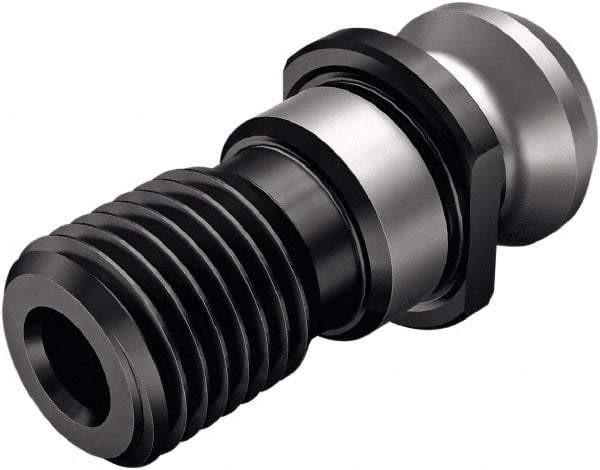

Seco - ANSI B5-50, CAT50, DIN50 Taper, M24x3 Thread, 45° Angle Radius, Standard Retention Knob - 2.299" OAL, 1.142" Knob Diam, 1" from Knob to Flange, Through Coolant
Item #: 38379640
Brand: Seco
Model #: 03119893
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | ANSI B5-50; CAT50; DIN50 |
| Thread Size | M24x3 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 1.1420 |
| Through Coolant | Yes |
| Neck Diameter (Decimal Inch) | 0.7660 |
| Overall Length (Decimal Inch) | 2.2990 |
| Knob to Flange Length (Decimal Inch) | 1.0000 |
