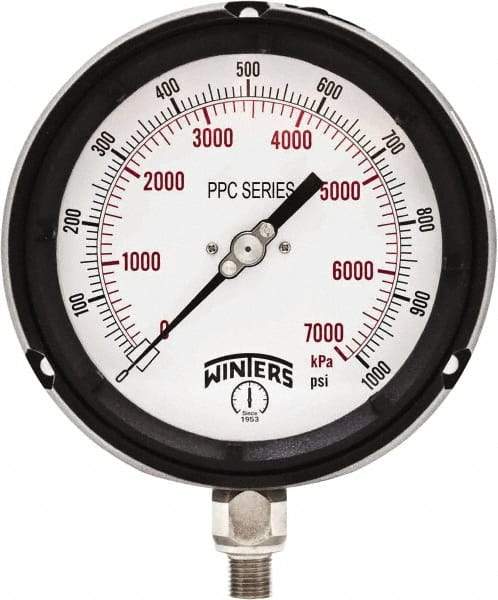

Winters - 4-1/2" Dial, 1/4 Thread, 0-1,000 Scale Range, Pressure Gauge - Bottom Connection Mount, Accurate to ±0.5% of Scale
Item #: 37838745
Brand: Winters
Model #: 5050SG950957SF.
Exact Tooling IR#: 04
Features and Benefits
Analog dials resemble a clock face, with a needle to indicate the pressure.
Product Specifications | |
---|---|
Type | Process Gauges |
Scale Measurement Ranges | 0-1000 |
Dial Diameter (Inch) | 4-1/2 |
Connection / Mount | Bottom |
Accuracy (%) | ±0.5% |
Type of Liquid Filler | No-Fill |
Case Material | Phenolic |
Dial Type | Analog |
Thread Size (Inch) | 1/4 |
Thread Type | NPT |
Wetted Parts Material | Stainless Steel |
Model Number | PPC |
Bourdon Tube | 316 St.St. |
Display Ranges | 0-1000 psi/kPa |
Color | Black |
Additional Information | w/Safety Glass Lens; w/Flushing Connection |
