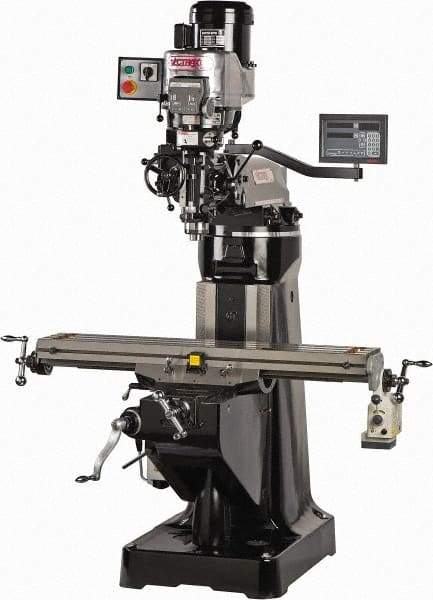

Vectrax - 9" Table Width x 48" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp
Item #: 37674983
Brand: Vectrax
Model #: 3916866/7130345
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications | |
---|---|
Spindle Speed Control | Variable Speed Pulley |
Table Length (Inch) | 48 |
Table Width (Inch) | 9 |
Phase | 3 |
Longitudinal Travel (Decimal Inch) | 36.0000 |
Cross Travel (Decimal Inch) | 12.0000 |
Knee Travel (Decimal Inch) | 16.0000 |
Maximum Spindle Speed (RPM) | 4200.00 |
Minimum Spindle Speed (RPM) | 60.00 |
Includes | X-Axis Powerfeed; 3-Axis Newall DP700 (Quill) DRO System |
Spindle Travel Length (mm) | 127.00 |
Spindle Travel Length (Inch) | 5 |
Spindle Taper Size | R8 |
Quill Diameter (mm) | 85.73 |
Quill Diameter (Decimal Inch) | 3.3750 |
Spindle Power Feed Rate Per Minute (mm) | 0.04 |
Spindle Power Feed Rate Per Minute (in/rev) | 0.0015 |
Minimum Spindle to Table Distance (mm) | 60.00 |
Minimum Spindle to Table Distance (Inch) | 2-1/2 |
Maximum Spindle to Table Distance (mm) | 60.00 |
Maximum Spindle to Table Distance (Inch) | 2-1/2 |
Minimum Spindle to Column Distance (Decimal Inch) | 6.7500 |
Maximum Spindle To Column Distance (Decimal Inch) | 18.7500 |
Table Load Capacity (Lb.) | 750.00 |
Table Load Capacity (kg) | 340.19 |
Number of T-Slots | 3 |
Left-Hand Head Tilt (Degrees) | 90.00 |
Right-Hand Head Tilt (Degrees) | 90.00 |
Forward Head Tilt (Degrees) | 45.00 |
Backward Head Tilt (Degrees) | 40.00 |
Ram Travel Length (Decimal Inch) | 12.0000 |
Horsepower (HP) | 3.00 |
Voltage | 208/230/460; 210/230/440 |
Overall Length (Inch) | 98-1/2 |
Overall Height (Inch) | 81-5/8 |
Overall Depth (Inch) | 63-5/8 |
