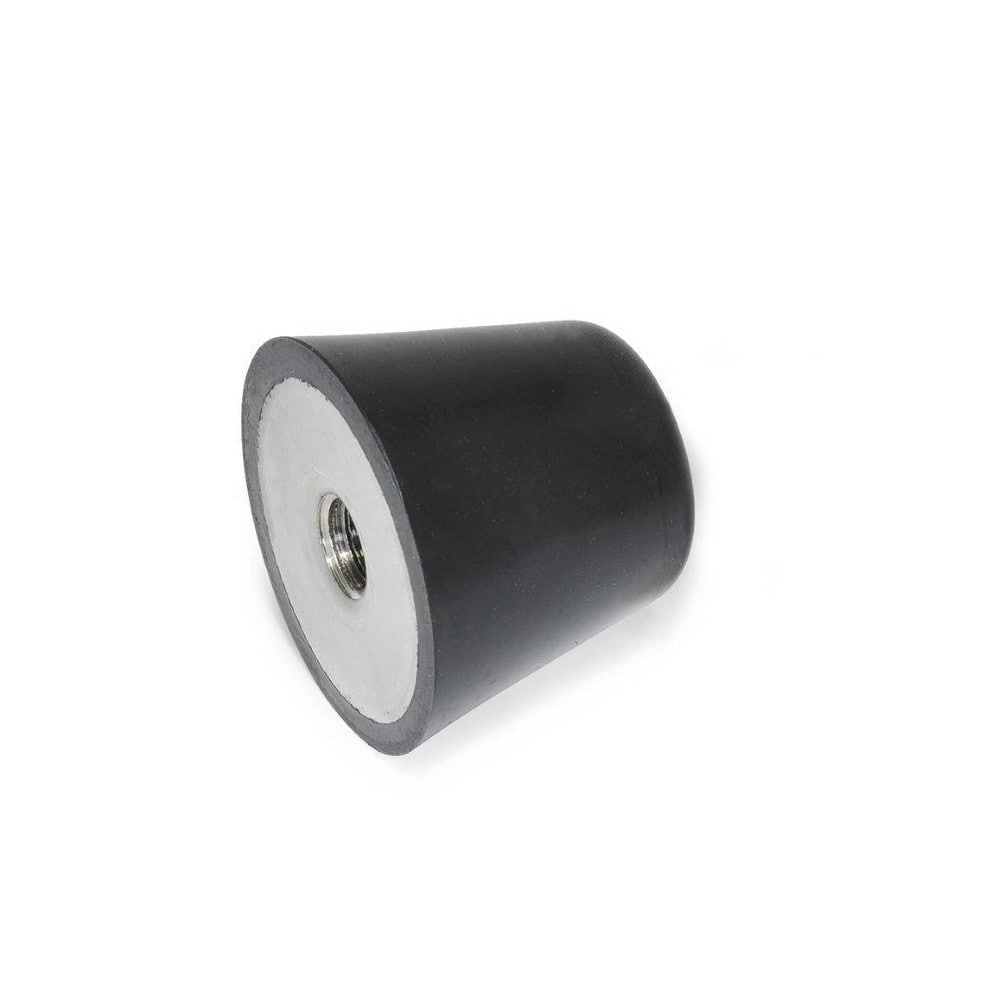

Vibration Isolators; Isolator Type: Plate/Plate; Insert Material: Stainless Steel; Isolator Material: Perbunan (NBR); Maximum Load Capacity: 1200.00 N; Top Diameter: 38.00; Bottom Diameter: 25; Thread Size: M8x1.25; Overall Width: 38 mm
Item #: 71807408
Brand: J.W. Winco
Model #: 254-38-M8-55
Product Specifications
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 1200.00 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 25 |
| Thread Size | M8x1.25 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Deflection | 0.3700 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 8.0000 |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 32 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 1200.00 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 25 |
| Thread Size | M8x1.25 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Deflection | 0.3700 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 8.0000 |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 32 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71807408 |
| Mfr Part # | 254-38-M8-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
