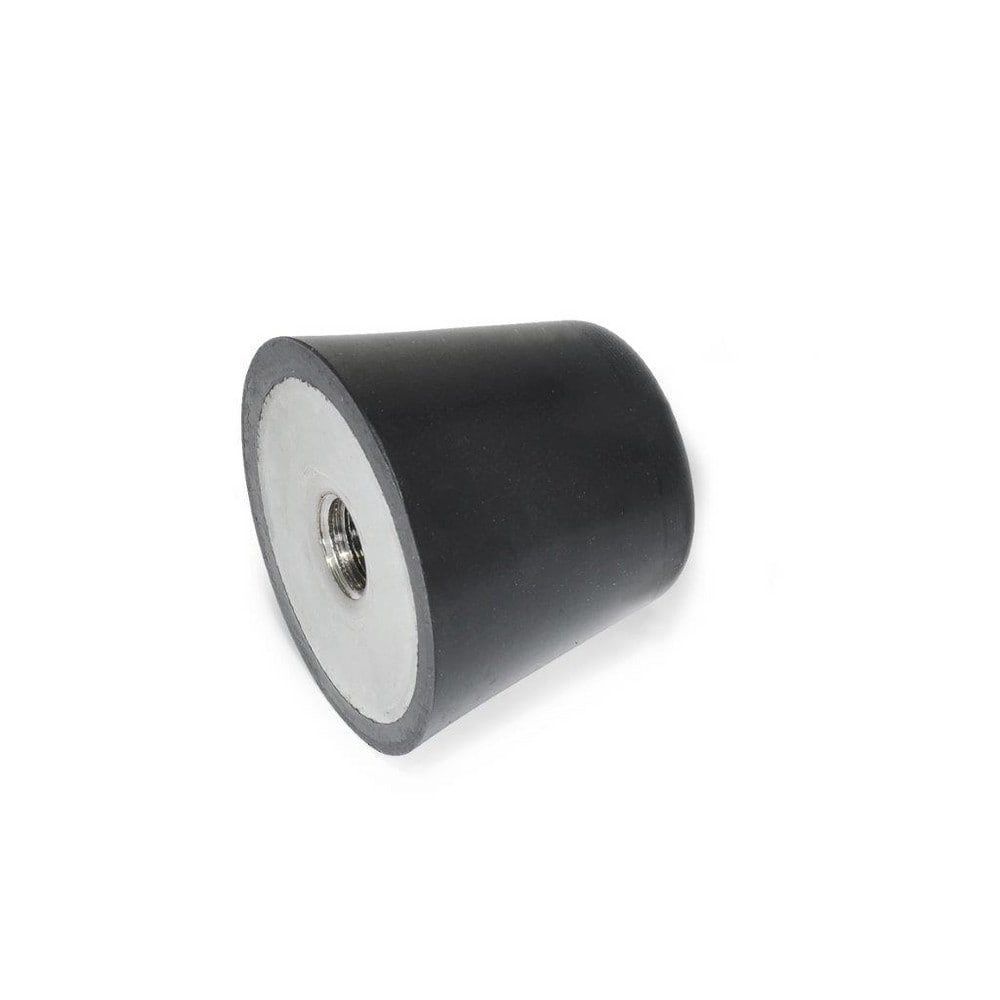

Vibration Isolators; Isolator Type: Plate/Plate; Insert Material: Stainless Steel; Isolator Material: Perbunan (NBR); Maximum Load Capacity: 110.00 N; Top Diameter: 19.00; Bottom Diameter: 12; Thread Size: M5x0.8; Overall Width: 19 mm
Item #: 71807259
Brand: J.W. Winco
Model #: 254-19-M5-55
Product Specifications
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 110.00 N |
| Top Diameter | 19.00 |
| Bottom Diameter | 12 |
| Thread Size | M5x0.8 |
| Overall Width | 19 mm |
| Overall Diameter | 19 mm |
| Deflection | 0.1600 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 5.0000 |
| Thread Pitch | 0.8 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 16 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 110.00 N |
| Top Diameter | 19.00 |
| Bottom Diameter | 12 |
| Thread Size | M5x0.8 |
| Overall Width | 19 mm |
| Overall Diameter | 19 mm |
| Deflection | 0.1600 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 5.0000 |
| Thread Pitch | 0.8 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 16 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71807259 |
| Mfr Part # | 254-19-M5-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
