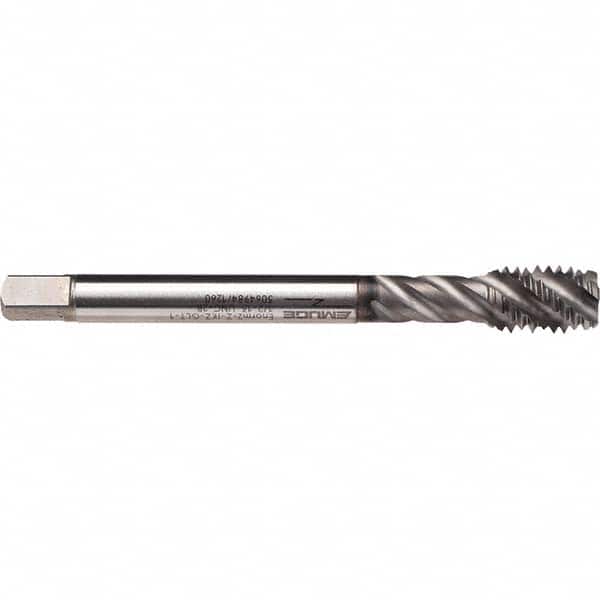

Emuge - 9/16-18 UNF 5 Flute 3B Bottoming Spiral Flute Tap
Item #: 96251376
Brand: Emuge
Model #: CU99C410.5048
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
GLT-1 is a multi-layered coating that offers a hard surface coating and an anti-friction layer for fast and efficient chip removal. It is heat resistant, wear resistant and prevents sliding.GLT-1 is a proprietary coating exclusive to Emuge.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 9/16-18 |
| Chamfer | Bottoming |
| Class of Fit | 3B |
| Thread Limit | H4 |
| Number of Flutes | 5 |
| Material | Cobalt |
| Finish/Coating | GLT-1 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (Decimal Inch) | 3.9370 |
| Thread Standard | UNF |
| Series/List | CU99C410 |
| Shank Diameter (Decimal Inch) | 0.4290 |
