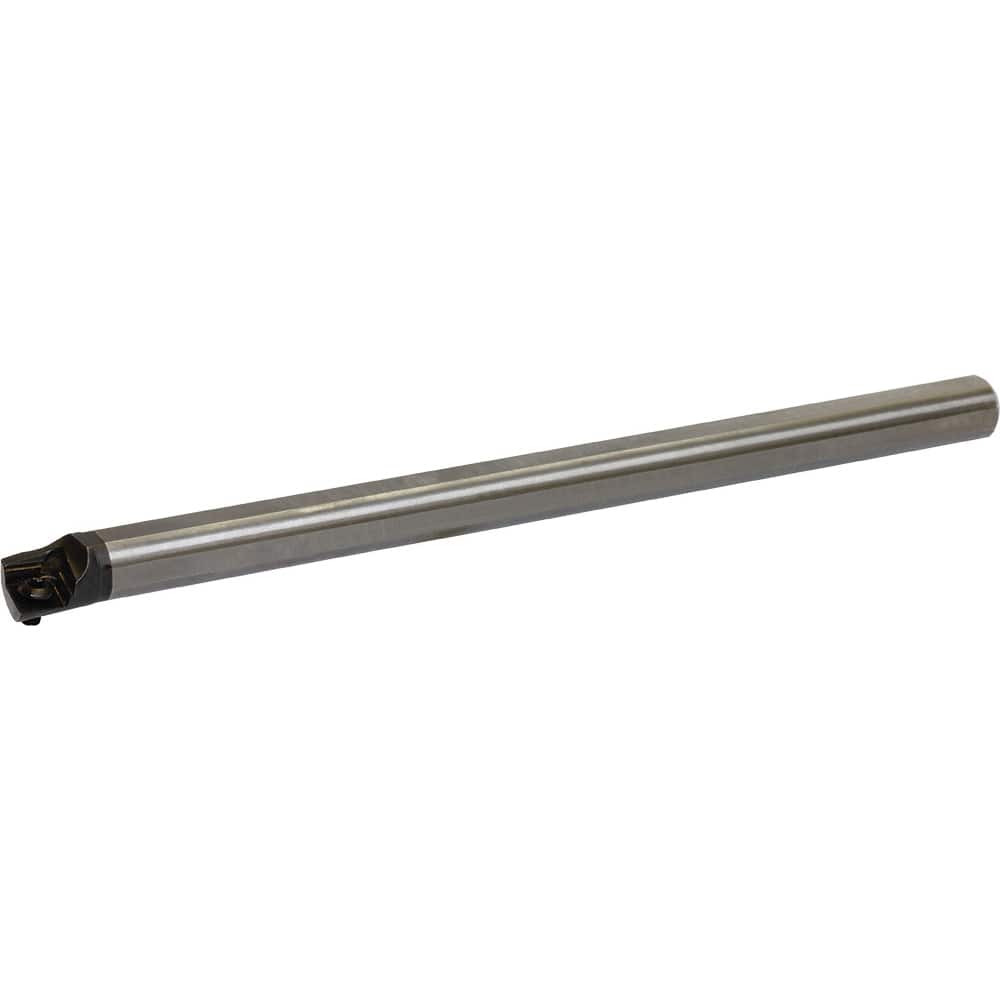

20.02mm Min Bore, 35mm Max Depth, Right Hand C...SCLP Indexable Boring Bar 254mm OAL, 5/8″ Shank Diam, 95° Lead Angle, Uses CPMT32 ™, CPMH32 ™, CPMB32 ™, CPGB32 ™, C...SCLP Inserts
Item #: 32731986
Brand: Kyocera
Model #: THC89103
Product Specifications
| Minimum Bore Diameter (mm) | 20.02 |
| Maximum Bore Depth (mm) | 35.00 |
| Toolholder Style | C...SCLP |
| Tool Material | Steel; Solid Carbide |
| Insert Compatibility | CPGB32?; CPMB32?; CPMT32?; CPMH32? |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (mm) | 254.00 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | GPBB |
| Insert Inscribed Circle (Inch) | 3/8 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (mm) | 10.00 |
| Multi-Use Application | Internal Facing; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Inch) | 1/8 |
| Manufacturers Catalog Number | C10SSCLPR3 |
| Radial Rake | -3 |
| Coolant Through | No |
