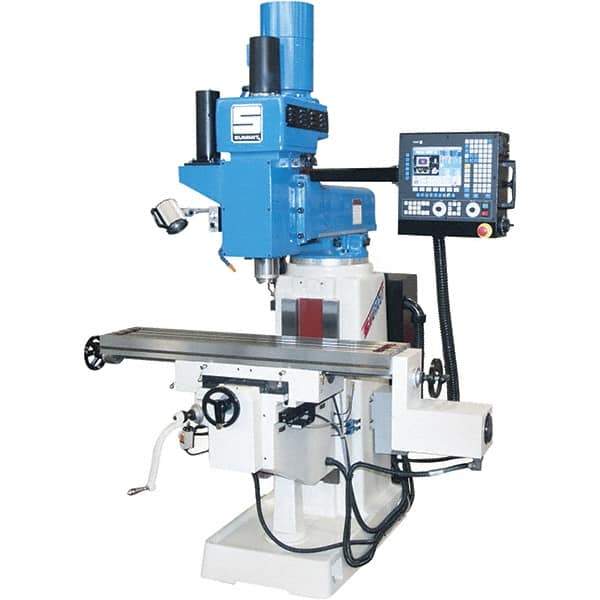

![Summit - 20" Table Width x 52" Table Length, Electronic Variable Speed Control, 3 Phase Knee Milling Machine - CAT40 Spindle Taper, 5 hp - Exact Industrial Supply](http://exactindustrialsupply.com/cdn/shop/products/8253985-21_1024x1024.jpg?v=1585922881)
Summit - 20" Table Width x 52" Table Length, Electronic Variable Speed Control, 3 Phase Knee Milling Machine - CAT40 Spindle Taper, 5 hp
Item #: 31710882
Brand: Summit
Model #: SMARTCUTEVS550B
Exact Tooling IR#: 04
Features and Benefits
Electronic Variable Speed control (EVS, are similar to variable speed pulleys, but the speed is controlled electronically rather than manually by turning a dial. They feature several speeds within a specified speed range.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications | |
---|---|
Spindle Speed Control | Electronic Variable Speed |
Table Length (Inch) | 52 |
Table Width (Inch) | 20 |
Phase | 3 |
Longitudinal Travel (Decimal Inch) | 32.0000 |
Cross Travel (Decimal Inch) | 14.0000 |
Knee Travel (Decimal Inch) | 17.0000 |
Number of Spindle Speeds | Variable |
Maximum Spindle Speed (RPM) | 3650.00 |
Minimum Spindle Speed (RPM) | 0 |
Includes | CNC Control; Air Powered Draw Bar; Way Covers; Chip Pan; Coolant System; Work Light |
Spindle Travel Length (mm) | 140.00 |
Spindle Taper Size | CAT40 |
Minimum Spindle to Table Distance (Decimal Inch) | 3.0000 |
Maximum Spindle to Table Distance (Decimal Inch) | 20.0000 |
Minimum Spindle to Column Distance (Decimal Inch) | 8.0000 |
Maximum Spindle To Column Distance (Decimal Inch) | 32.0000 |
Table Load Capacity (Lb.) | 1025.00 |
Left-Hand Head Tilt (Degrees) | 90.00 |
Right-Hand Head Tilt (Degrees) | 90.00 |
Forward Head Tilt (Degrees) | 45.00 |
Backward Head Tilt (Degrees) | 45.00 |
Horsepower (HP) | 5.00 |
Voltage | 220/360 |
Overall Length (Inch) | 73 |
Overall Height (Inch) | 100 |
Overall Depth (Inch) | 75 |
Warranty | Mfr's One Year Warranty |
