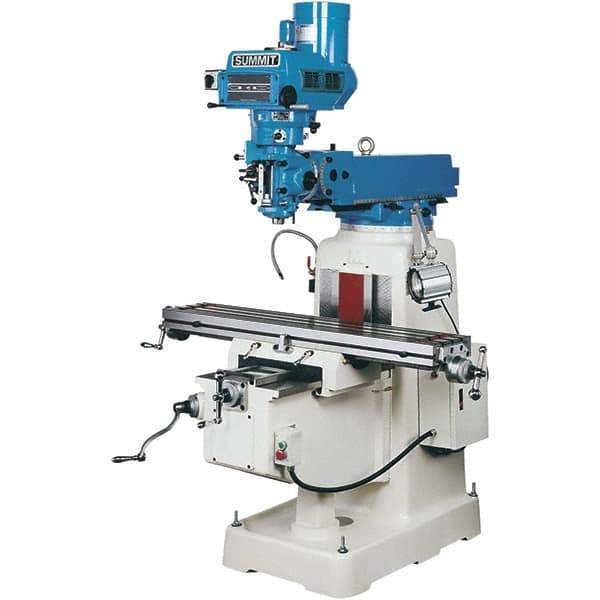

Summit - 18-1/2" Table Width x 54" Table Length, Electronic Variable Speed Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp
Item #: 31710874
Brand: Summit
Model #: SMARTCUTEVS350B
Exact Tooling IR#: 04
Features and Benefits
Electronic Variable Speed control (EVS, are similar to variable speed pulleys, but the speed is controlled electronically rather than manually by turning a dial. They feature several speeds within a specified speed range.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Electronic Variable Speed |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 18-1/2 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 34.0000 |
| Cross Travel (Decimal Inch) | 14.0000 |
| Knee Travel (Decimal Inch) | 15.0000 |
| Number of Spindle Speeds | Variable |
| Maximum Spindle Speed (RPM) | 4300.00 |
| Minimum Spindle Speed (RPM) | 0 |
| Includes | CNC Control; Way Covers; Chip Pan; Coolant System; Work Light |
| Spindle Travel Length (mm) | 125.00 |
| Spindle Taper Size | R8 |
| Minimum Spindle to Table Distance (Decimal Inch) | 2.5000 |
| Maximum Spindle to Table Distance (Decimal Inch) | 18.5000 |
| Minimum Spindle to Column Distance (Decimal Inch) | 4.5000 |
| Maximum Spindle To Column Distance (Decimal Inch) | 26.2500 |
| Table Load Capacity (Lb.) | 850.00 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Horsepower (HP) | 3.00 |
| Voltage | 220/360 |
| Overall Length (Inch) | 75 |
| Overall Height (Inch) | 82-3/16 |
| Overall Depth (Inch) | 68 |
| Warranty | Mfr's One Year Warranty |
